> New brand imperial sizes brake pipe flaring kit 10PC
New brand imperial sizes brake pipe flaring kit 10PC
Suitable for single or double lap flares in soft copper and aluminium pipes.

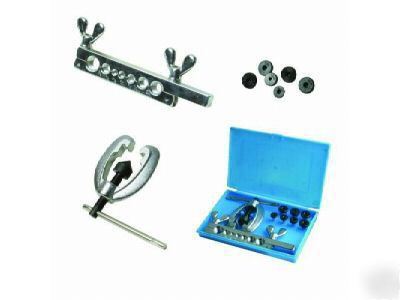

Kit contains pipe clamp, 45 degree spreader and 7 dies
3/16", 1/4", 5/16", 3/8", 7/16", 1/2" and 5/8".
1. Cut tubing off square with tubing cutter.
2. Deburr tubing with reamer or reamer blade of tubing cutter.
3. Chamfer the outer edge of the tubing with file or grinding wheel (SEE FIGURE 1). These steps are extremely important for correct flare forming.
1. Slip prepared tubing through correct size hold in flaring bar. Tubing should extend beyond the surface of the flaring bar to the distance determined by the step on the proper size adaptor laid flat surface down on the flaring bar
2. With tubing extending the correct distance through the flaring bar, tighten the wing nuts firmly. Tighten the wing nut nearest the tubing first, followed by the second wing nut. Insert stem of correct size adaptor into tubing.
3. Place yoke assembly over flaring bar and adaptor so the swivel head meeds depression in the face of the adaptor. U T-handle of yoke assembly to force swivel head down until adaptor rests flat on flaring bar . The tubing end should now be formed into a bell shape.
4. Bar off swivel head, remove the adaptor and retighten the swivel head so that bell shape of tubing is folded in on itself . This completes a double flare. PRO TOOLS, VERY HIGH SPEC PERFORMANCE GARANTEED
