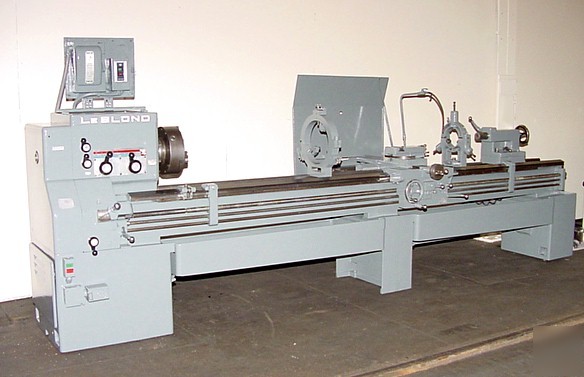

19" x 120" leblond regal engine lathe w/ taper, sr's,
19" x 120" LeBLOND REGAL ENGINE LATHE w/ TAPER, SR's,
19" x 120" LEBLOND REGAL ENGINE LATHE
MODEL: 19" REGAL, S/N: 7E-1699 NEW: 1970
SWING OVER BED .................... 19-1/4"
SWING OVER CROSS SLIDE ............ 12-1/4"
DISTANCE BETWEEN CENTERS .......... 120"
SPINDLE NOSE ...................... L-1
HOLE THRU SPINDLE ................. 1-49/64"
SPINDLE SPEED RANGE (12) .......... 38 - 1500 RPM
LONGITUDINAL FEED RANGE (48) ...... .0018" - .104" IPR
THREADING RANGE ENGLISH (48) ...... 2 - 112 TPI
TAILSTOCK SPINDLE TRAVEL .......... 7"
TAILSTOCK SPINDLE TAPER ........... #4 MT
APPROX WEIGHT ..................... 5,000 LBS
APPROX DIMENSIONS ................. 160"L x 40"W x 51"H
COOLANT SYSTEM WITH REMOVABLE CHIP PANS
HARD & GROUND REPLACEABLE BEDWAYS
