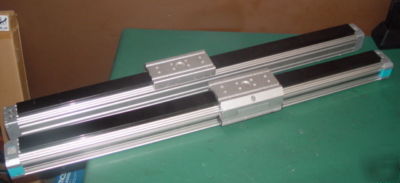

(2) festo dgpl ball bearing linear drive w/ slide table
* Type: Linear Drive w/ Slide
* Cushioning: Adjustable end-position cushioning
* Position sensing: Via Magnet
* Guide: Recirculating ball bearing guide
* Slot Cover: Mounting Slot
Linear actuator For proximity sensing, rodless, with positive-locking connection between piston and actuator and adjustable end-position cushioning at both ends.
* Cushioning = PPV: Pneumatic cushioning adjustable at both ends
* Guide = Plain-bearing guide
* Driver principle = positive-locking (slot)
* Position detection = For proximity sensor
* Working pressure = 1.5 - 8 bar
* Mode of operation = double-acting
* Operating medium = Compressed air, filtered, unlubricated
* Filtered, lubricated air
* Corrosion resistance classification CRC = 2
* Ambient temperature = -10 - 60 C
* Theoretical force at 6 bar, return stroke = 754 N
* Theoretical force at 6 bar, advance stroke = 754 N
* Moving mass with 0 mm stroke = 1,500 g
* Basic weight for 0 mm stroke = 3,890 g
* Additional mass factor per 10 mm of stroke72 g
* Alternative connections = See product drawing
* Pneumatic connection = G1/4
* Materials information for cover = Aluminum casting
* Materials information for seals = NBR
* Materials information, housing = Aluminum
