Agilent / hp 5352B 40GHZ cw microwave counter option 10
We are an AGILENT CERTIFIED DISTRIBUTOR!

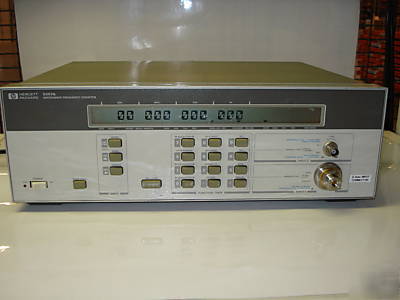

Listed here we have a Agilent 5352B 40 GHz CW Microwave Counter with option 010. This item comes with everything you see in the picture. This item was purchsed from a working calibration lab and is in excellent condition. Option 010 is listed as Aging rate: 1 X 10^-10/day Temp (0 to 50 C): 7 X 10^-9.
The Agilent 5352B provides fast and precise measurements from 10 Hz to 40 GHz (46 GHz optional) and features microwave components that are integrated on a single hybrid gallium arsenide (GaAs) circuit for added speed and reliability. The 5352B distinguished by wide frequency coverage, exceptional sensitivity, fast tracking, high measurement throughput, and wide FM tolerance.
Built-in microprocessors provide math functions, including measurement scaling and offset. Automatic amplitude discrimination measures the frequency of the highest-amplitude signal in a multi-signal environment. A full set of diagnostic routines provides general information and troubleshooting.
The 5352B integrates easily into test systems. English-like commands simplify integration with other components, and the easy-to-read liquid crystal displays can serve as message centers for the system.
* Frequency range from 10 Hz to 40 GHz (46 GHz with Opt. 005) directly measures in millimeter wave range, without expensive mixers
* Sensitivity to -32 dBm ensures accurate measurement of low-energy signals
* Low kickback noise for sensitive environments; sleep mode reduces noise to -70 dBm
* Fast acquisition time (60 ms in automatic, fast acquisition tracking mode; 20 ms in manual mode) for improved throughput.
* Up to 120 measurements per second (100 in automatic mode) over HP-IB (fully programmable)
* Fast tracking speed allows effortless tracking of source drift to 1 GHz per second; ideal for measuring the response of voltage-controlled oscillator to voltage-source tuning.
