Ametek t-20 dead weight tester pump set + weights
AMETEK T-20 DEAD WEIGHT TESTER PUMP SET + WEIGHTS
Model:......................................................... Type T
Type:................................................ Hydraulic, piston gauge
Increments (low - min):.... 5 psi, 0.5 kg/cm
Increments (high - min):.... 50 psi, 5 kg/cm
Gravity:.......................9.80665 m/s
Piston/cylinders:..........................Single
Columns:.....................................Single
Pressure source:.....................Lever action, hand-actuated,dual volume hydraulic pump
Medium:.....................Distilled water/alcohol mix (standard)
Reservoir capacity:...........................................1.23 l / 75 in
Displacement (high range):..... 2.8 to 3.2 cm
2 / 0.17 to 0.20 in3 per stroke
Displacement (low range):....................................0.30 to 0.40 cm
2 / 0.018 to 0.024 in3 per stroke
Wetted surfaces:...............300 series stainless steel, monel
O-rings:.......................... Buna N (standard
Test connections: ................1/4 NPT, 1/2 NPT, 7/16 UNF
.................... - 1/4 BSP and 1/2 BSP (with metric models)
Weight material:.. Hard, non-magnetic alloy (imperial units),
.......stainless steel ( ??0.015% imperial and metric models),
........................... aluminum (small incremental weight sets)
Engineering units:................................ psi, kg/cm
Single column / Single piston / cylinder units

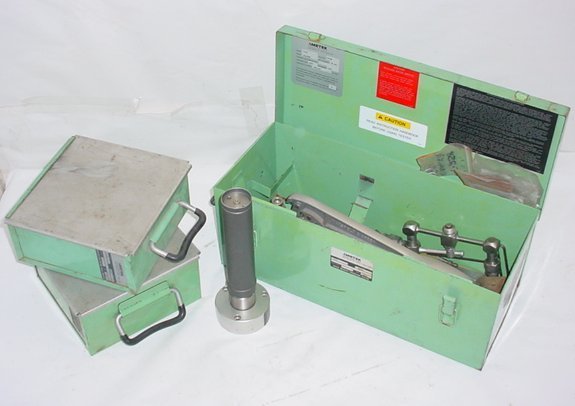

Two cases of weights are included, as well as parts shown. This instrument appears to be in good used condition, in it's original storage case. The pump itself is not mounted on the steel plate, but I believe the bolts in the case allow you to bolt it down. Great opportunity to save thousands! No Reserve!
