Square d qed i-line switchboard 4000 amp 3000A 480Y/277


4000Amp Supply, 3000 Amp Section

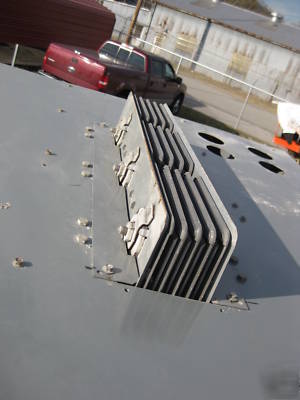

Can be fed via Bus or Busway (See Picture)

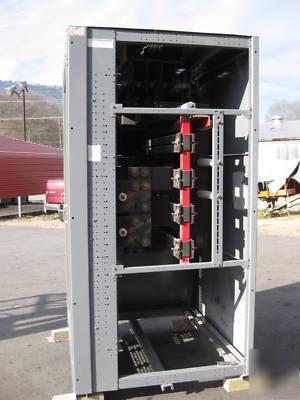

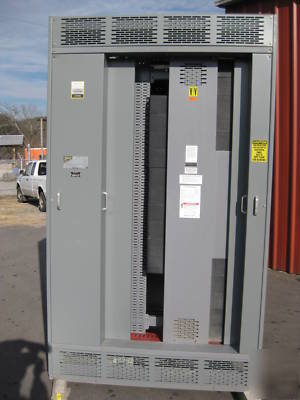

This 4000A Supply 3000Amp Bus or Bussway fed Servicable Type PanelBoard is in excellent condition both externally and internally. This Industrial Panel was in excellent operating condition when it was removed from service. The unit is very clean. One set of side panels are missing but can be made upon request. If you need the breakers for this panel let us know.
4000 A SUPPLY BUS, 3000 A SECTION BUS

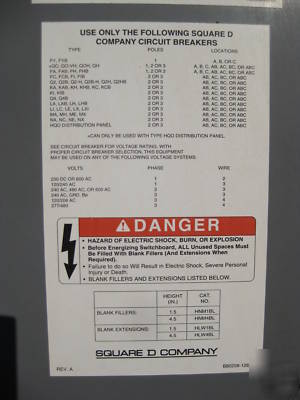

This Panel will hold the following I-Line Breakers with the following Frames (and those comparable): FA, FH, and FC- KA, KH, and KC, LA, LH, and LC, MA, MH, and MC, and NA, NH, and NC Breakers. 72" of breaker space for row of F, K, L, M and N Breakers. 45" of space for another row of F, and K Breakers.
Dimensions 48"Deep 54" Wide 92" Tall
