TEK423 universal reset module-4 TN4,2-boilerdhw
TEK423 UNIVERSAL RESET MODULE-4 TN4,2-BOILERDHW

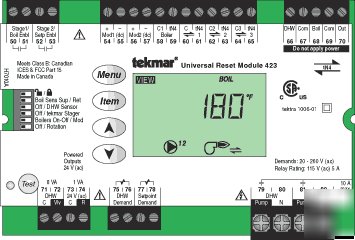

Universal Reset Module 423 - Four tekmarNet 4, Boiler, DHW & Setpoint
http:// /literature/acrobat/d423.pdf
Control Description The Universal Reset Module 423 provides outdoor reset to a hydronic heating system in order to maximize comfort and efficiency. The 423 can operate two on / off boilers or two modulating boilers. The 423 can override the outdoor reset water temperature to provide Domestic Hot Water or Setpoint operations. The 423 can operate four outdoor reset water temperatures, up to three of these water temperatures can be mixing water temperatures. To operate a mixing device, a Mixing Expansion Module must be connected to the 423 for each mixing water temperature.
Microprocessor PID control; This is not a safety (limit) control
3-5/8" H x 5-3/8" W x 9/16" D (92 x 137 x 14 mm)
CSA C US, CSA/UL 61010-1, meets Class B: ICES and FCC Part 15
Indoor use only, 32 to 122 F (0 to 50 C).
RH equal to or less than 92% to 104 F (40 C), down to 50% above 104 F (40 C)
Altitude <3000 m (9840 ft), Installation Category II, Pollution Category 2
Provided by interconnected Zone Manager
115 V (ac) 5 A 1/4 hp, pilot duty 240 VA
10 A Maximum (for DHW and Primary Pump)
NTC thermistor, 10 k? @ 77 F (25 C 0.2 C) =3892
Outdoor Sensor 070 and Universal Sensor 071
