Ksi professional 8081CSD 2WAY 8" drop ceiling mount sp

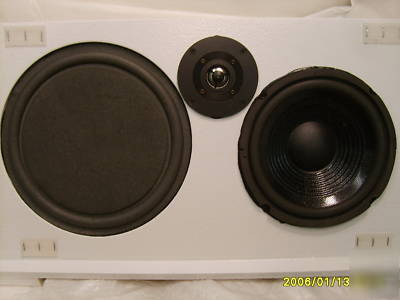

Offers smooth midrange performance with powerful bass response through the use of an optimally tuned passive radiator. An 8" transducer provides superb voice reproduction for greatly improved intelligibility not found in many other loudspeakers. Coupling this to a 1" titanium dome tweeter gives the 8081-CSD outstanding clarity and coherence along with wide frequency response and moderate power capacity. To further enhance the low frequency and midrange performance of the 8081-CSD, anti-resonance fabrication has been included for the backbox enclosure. State-of-the-art CNC machinery allows for the producion an incredibly strong, vibration-free and low weight enclosure, which greatly improves sound quality over the entire spectrum. The front baffle is precisely angled to render accurate imaging and spatial detail, which assures faithful reproduction of dialogue and complex digital audio when used in a left, center and right configuration for video.
The 8081-CSD only protrudes 10" from the ceiling, sure to stay out of the way.
* Frequency Response: 48Hz-20kHz (+/- 3db)
* Sensitivity: 92 db (1w/1m)
* Power Capacity: 50 W RMS; 100 Program
* Crossover Frequency: 3500 Hz @ 6db/octave
* Nominal Dispersion: At least 110 up to 6kHz
* Low Frequency Transducer: 8" 1-1/2" voice coil
* High Frequency Transducer: 1" titanium dome
* Tuning: 10" passive radiator
* Enclosure Type: Optimally vented
* Enclosure Dimensions: 23 5/8"H x 23 5/8"W x 10"D
* Enclosure Construction: 1/2" particle board with internal stiffeners
* Finish: White baffle and grille
* Electrical input: Hardwire input
* Options: 25 & 70.7 volt transformers
* UL Fire rated particle board
