> 102 * 65 3310 5110 compatible view size 30.8 * 31.3 mm
102 * 65 3310 5110 compatible view size 30.8 * 31.3 mm
102 * 65 3310 5110 compatible view size 30.8 * 31.3 mm out size 40.8* 57.6 *18
can directly drived by at89c51

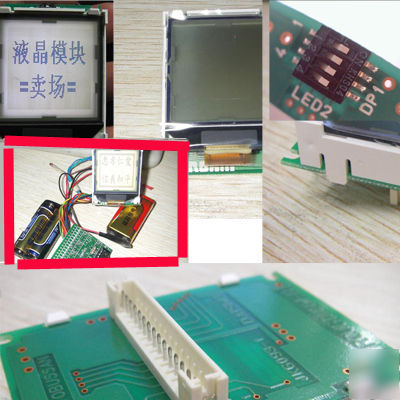

all in picture will give you except the cell and the wire .
it will come with the driver board in fact . but the microchip board and cell in red line area for demo not
3310 5110 compatible but display more dots and more feature but display direction is different.
11 dc-b instrument control h data l instrment
pd=1 internal dc voltage raise shut off
pd=0 internal dc voltage raise on
lcd duty setting : for example lcd 1/7
.bs2="0" ,bs1="0",bs0="0" :1/9
.bs2="0" ,bs1="0",bs0="1" :1/9
.bs2="0" ,bs1="1",bs0="0" :1/9
.bs2="0" ,bs1="1",bs0="1" :1/8
.bs2="1" ,bs1="0",bs0="0" :1/7
.bs2="1" ,bs1="0",bs0="1" :1/6
.bs2="1" ,bs1="1",bs0="0" :1/6
.bs2="1" ,bs1="1",bs0="1" :1/6
/*sbit SCK = P3^0;//AT89C2051 drive by dc 3Volt
void WR_LCD(unsigned char value,bit DATACOMM);
char code INIT[] = {0x21,0xbd,0x14,0x20,0x0C};
/*- if width can div by 8 please adjust to width x height =102x72 -*/
0xFF,0x80,0xBF,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA7,
0xA7,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,
0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xAF,0xA1,0xA1,0xA1,0xA1,0xA3,0xA1,0xA0,0xA0,0xA0,
0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA3,0xA3,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,
0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA1,
0xA2,0xA3,0xA4,0xAC,0xA0,0xA1,0xA3,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,0xA0,
0xA0,0xA0,0xA0,0xBF,0x80,0xFF,0xFF,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x40,0x7C,0x48,0x48,0xFF,0xF8,0x88,0x88,0x98,0xF9,0xC1,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x18,0x11,0x11,0x92,0x96,0x9E,0xFA,0x12,0x25,0x56,
0xA6,0x20,0x20,0x20,0x20,0x00,0x00,0x00,0x00,0x01,0x02,0x0C,0x18,0x7F,0xC0,0x00,
0x00,0x00,0x18,0x10,0x10,0x10,0x10,0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x18,0x70,0x26,0x2C,0xE0,0x25,0x33,0xBA,0x42,0x4A,0xD6,0x5C,0x50,0x60,0x60,
0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0xFF,0xFF,0x00,0xFF,0x00,
0x00,0x00,0x00,0x00,0x08,0x38,0x60,0x00,0x60,0x10,0x08,0x84,0x44,0x66,0x06,0x06,
0x16,0x8C,0xCC,0x40,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x40,0x80,0x80,0x20,0x20,
0x20,0x20,0x44,0x46,0xFC,0x40,0x40,0x40,0x40,0x40,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x08,0xFC,0x00,0x20,0x20,0x20,0x20,0x20,0x60,0x40,0x40,0x40,0x40,0x40,
0x40,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x02,0x12,0x22,0x64,0xA4,0xA8,0x98,0xB8,
0xEC,0xCC,0x06,0x06,0x06,0x02,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,
0x00,0xFF,0xFF,0x00,0xFF,0x00,0x00,0x00,0xFE,0x40,0x30,0x40,0xFE,0x00,0x00,0x00,
0x00,0x03,0x04,0x04,0x05,0x03,0x00,0x00,0x02,0x07,0x00,0x00,0x00,0x02,0x04,0x04,
0x04,0x03,0x00,0x02,0x04,0x04,0x04,0x03,0x00,0x01,0x02,0x04,0x07,0x00,0x00,0x39,
0x28,0x28,0x28,0x27,0x00,0x0F,0x14,0x24,0x24,0x03,0x00,0x20,0x20,0x27,0x28,0x30,
0x00,0x06,0x09,0x09,0x09,0x06,0x00,0x06,0x09,0x09,0x09,0x07,0x00,0x07,0x08,0x08,
0x08,0x07,0x00,0x08,0x0F,0x09,0x09,0x06,0x00,0x07,0x08,0x08,0x08,0x04,0x00,0x08,
0x0F,0x08,0x08,0x07,0x00,0xFF,0x00,0xFF,0xFF,0x00,0xFF,0x00,0x00,0x00,0x60,0x10,
0x0F,0x10,0x60,0x00,0x00,0x00,0x00,0xE0,0x50,0x90,0x10,0xE0,0x00,0x00,0x10,0xF0,
0x10,0x00,0x00,0x70,0x90,0x90,0x90,0x10,0x00,0x20,0x10,0x90,0x90,0x60,0x00,0xC0,
0x40,0x41,0xF1,0x40,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x80,0x80,0x80,0x00,
0x00,0x00,0x00,0x80,0x00,0x00,0x00,0xC0,0x20,0x20,0x20,0xC0,0x00,0x00,0x20,0x20,
0x40,0x80,0x00,0xE0,0x80,0x80,0x80,0xE0,0x00,0x20,0xE0,0x20,0x20,0xC0,0x00,0xC0,
0x20,0x20,0x20,0x40,0x00,0x20,0xE0,0x20,0x20,0xC0,0x00,0xFF,0x00,0xFF,0xFF,0x00,
0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x06,0x1B,0x70,0x00,0x04,0x08,0x09,
0x49,0x39,0x39,0x09,0x18,0x18,0x18,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x01,0x15,0x95,0xD5,0x16,0x3F,0x6B,0xAA,0xAA,0x23,0x02,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x01,0x01,0x01,0x11,0x11,0x3D,0x7F,0x62,0x42,0x02,0x02,0x01,0x01,0x02,
0x02,0x02,0x03,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x46,0x42,0x40,
0x40,0x7F,0x40,0xC0,0x86,0x1C,0x18,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0xFF,0x00,0xFF,0xFF,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x40,0x80,0x00,0x03,
0xFF,0x00,0x00,0x00,0x0C,0x27,0x24,0x49,0x49,0x49,0x4F,0x0C,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x12,0x12,0x52,0x54,0xFF,0xA4,0x28,0x21,0xE1,0x7A,0x24,0x6F,
0xB9,0x80,0x03,0x00,0x00,0x00,0x00,0x00,0x04,0x08,0x18,0x30,0x60,0xFF,0x40,0x40,
0x20,0x00,0x00,0xF8,0x08,0x08,0x08,0x70,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x40,
0x40,0x40,0x40,0x40,0x40,0x40,0x40,0xFF,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0xFF,0xFF,0x00,0xFE,0x02,0x02,0x02,
0x02,0x02,0x02,0x02,0x02,0x02,0x82,0x02,0x02,0x02,0x02,0x82,0x82,0x02,0x02,0x02,
0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x82,0xC2,0x02,
0x02,0x02,0x02,0x02,0x02,0x02,0x82,0xC2,0xC2,0x02,0x02,0x02,0x02,0x02,0x02,0x02,
0x02,0x02,0x02,0xC2,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,
0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0xC2,0x02,0x02,
0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0xFE,0x00,0xFF,
0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,
0x80,0x80,0x80,0x80,0x80,0x80};
{ WR_LCD(0x40,0);WR_LCD(0x80,0);
void WR_LCD (unsigned char value,bit DATACOMM)
