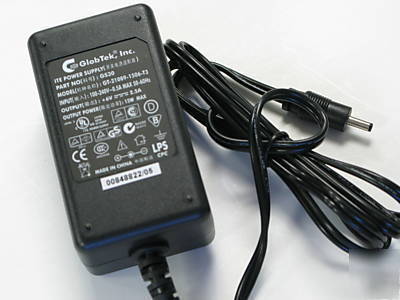

5V dc, 6A switching power supply, desktop, nos
OUTPUT CURRENT: 6 A, NO LOAD TO FULL LOAD, NO MINIMUM LOAD REQUIRED
RATED OUTPUT POWER: 30 WATTS, MAXIMUM
OUTPUT REGULATION: +/-5% MEASURED AT THE OUTPUT CONNECTOR
HOLD-UP TIME: 10mS TYPICAL AT NOMINAL INPUT VOLATAGE AND FULL LOAD
OVER-VOLTAGE: VOLTAGE LIMITED TO LESS THAN 130%, CROWBAR METHOD
SHORT CIRCUIT: HICUP MODE, OUTPUT WILL AUTORECOVER UPON REMOVAL OF SHORT
ITE UNITS: UL 60950, CUL TO 22.2 NO. 60950, TUV TO EN60950
EMI: COMPLIES WITH EN55022 CLASS B AND FCC PART 15 CLASS B WHEN
TESTED WITH RESITIVE LOAD, BOTH CONDUCTED AND RADIATED EMI.
UMIDITY: 0% TO 90% RELATIVE HUMIDITY
Output connector: SINGATRON LOCKING TYPE MDP-402-4P
