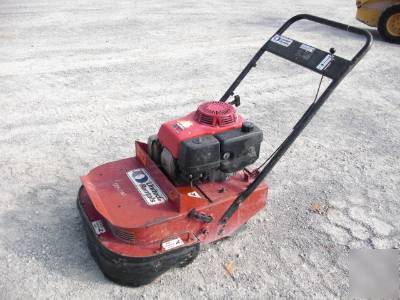

General SG24/gh SG24 surface concrete polisher grinder
General SG24/GH SG24 Surface Conrete Polisher Grinder
General SG24/GH SG24 Surface Concrete Polisher Grinder
I have another one of these if interested.
* Type: Honda, GXV340, 4-Cycle gasoline engine
* Starting Method: Mechanical rewind
* Structure: Unitized, welded steel plate
* Bearings: High capacity, Zerk type fittings
* Drive System: Single V-belt/pully reduction
* Multi-Accessory Disc: One each, aluminum, direct mounting
* Disc Rotation Speed: 250 RPM
* Operator Handle: Adjustable height and foldable
* Width: 27-1/2 inch (699 mm)
* Length: 55-1/4 inch (1403 mm)
SG24/GH Surface Grinder, equipped with Honda GX340 Series 11 HP gasoline engine, oil alert and dual element air cleaner. 24 inch maximum grinding width; welded, unitized steel frame; twin, quick change counter rotating multi-accessory discs with elastomeric type gimbal head system; twin V belt and sealed spur gear reduction; integral V belt tension adjustment mechanism; adjustable wheel height and 3 inch diameter vacuum tube
General's SG24/G gasoline powered surface grinder features various grinding systems designed for breaking up deposits of grease, dirt, rubber carpet backing and industrial residues; cleaning concrete asphalt and tiles; producing exposed aggregate slabs; and buffing and polishing more delicate terrazzo and marble floor surfaces.
The SG24/G features twin, counter-rotating discs that can work a 24"x12" area. These standard discs can be quickly removed to allow an operator to attach standard 10" diameter, multi-segmented dry diamond discs for increased productivity on polymer concrete, epoxy, plastic overlays and critical flat floor installations.
Power is derived from various industrial quality 11 hp engines, with optional conversion to LP gas available. Featuring a heavy duty, dual V-belt/spur gear transmission, the unit also has an adjustable position handle for variances in operator height. In addition, the caster wheel height is also adjustable to accommodate differences in grinding system selection and component wear.
General's SG24/G surface grinder... an ideal solution to your surface preparation needs.
