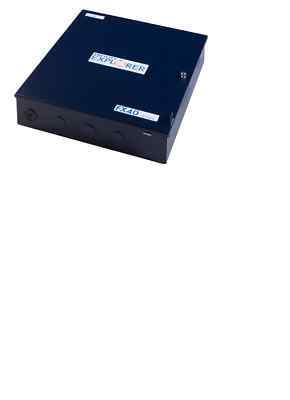

New FX40 johnson controls in the box was not installed
New in the box. Has not been installed.
The Facility Explorer FX40 Supervisory Controller offers a powerful and flexible
supervisory control solution for a wide variety of system control requirements.
The FX40 is designed to supervise a network of field controllers to form a complete
building automation system, and to allow intranet/internet access
to the system via a standard web browser.
Up to l0 inputs and outputs can be directly
connected to the FX40, including:
All form C, SPDT 24 VAC/DC @2A relays
Six universal inputs, which can be any of the
The FX40 features multiple communication
interfaces with support for the most popular
HVAC field device protocols. Included with the
FX40 are the following communication ports:
1 Ethernet port (10/100 Mb) supporting
1 RS-485 port with N2 driver
1 RS-232 port or optional internal modem
(56k baud autodial/autoanswer)
The FX40 supports up to 100 devices on its communication
trunks, including any combination of the following
FX field devices fitted with N2 communication cards
N2 ASCs (VMA, DX-9100, UNT, VAV, AHU)
FX field devices fitted with LonWorks
Third party LonMark compliant devices
Third party BACnet devices compatible with
Full Suite of Building Automation and
The FX40 features a comprehensive suite of building
automation and control features including the following:
User access with password protection
Rich, graphical representation of system information
The FX40 can be easily engineered using FX Workbench.
FX Workbench can operate as a standalone application
on a PC, or it can be served up by the FX40 and be
accessed using a standard Web browser. FX Workbench
features online automatic device discovery for LonWorks
and BACnet devices, and an assisted import feature for
The FX Workbench includes several labor saving features
to assist the engineering of the system, when using
standard Facility Explorer applications, including:
Automatic linking of the field devices occupancy
Using check boxes to enable/disable point extensions
Automatic system graphic creation and linking to
LonWorks and LonMark are registered trademarks of Echelon Corporation
BACnet is a registered trademark of American Society of Heating,
Refrigerating and Air Conditioning Engineers (ASHRAE)
Niagara Framework is a registered trademark of Tridium, Inc.
