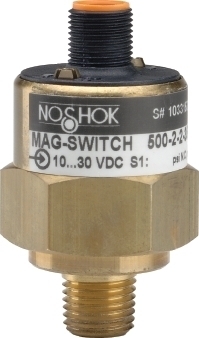

Noshok 500 series mag switch 100 psi
The NOSHOK Mag-Switch is an electronic pressure switch that utilizes proven diaphragm pressure sensing technology coupled with hall effect magnetic field sensing technology and semiconductor switching technology to provide a highly reliable, accurate, repeatable, cost effective pressure switch without mechanical contacts. The switch points are field adjustable utilizing readily accessible adjustment screws with an adjustment range of 10-100% of full scale value. The standard electrical connection is a 4 pin M12 x 1 threaded connector.
* Part Number: 500-3-2-100-2
* Pressure Range: 0 psig to 100 psig
* Process Connection: Brass (1/4" male straight thread)
* Wetted Parts: Copper Alloy
* Switching Functions: 2 N.O.-pnp
* Adjustability: Adjustment screw. Switching point 10...100% of full scale
* Accuracy & Repeatability: 1% of full scale
* Switching Hysteresis: 10% of full scale
* Power Supply: 10...30 VDC, unregulated
* Contact Rating: Max. 100mA (max. 30 VDC)
* Temperature Compens. Range: 32 F tp 175 F (0 C to 80 C)
* Temperature Effect: 0.04% full scale/ F
* Storage: -22 F to 175 F (-30 C to 80 C)
* Media: -5 F to 175 F (-20 C to 80 C)
* Ambient: -5 F to 175 F (-20 C to 80 C)
* Cable conn. NEMA 6: IP 67 (IEC 529)
* M12 x 1 conn. NEMA 4: IP 65 (IEC 529)
* Electromagnetci Capability:
* Electrical Protection Types: Reverse polarity and overvoltage protection
* Field adjustable switch points
* Semiconductor switching relays (no mechanical contacts)
* Suitable for direct connection to PLC's
* Integrated LED switching indication
* Hydraulic and pneumatic systems
* Industrial machinery and machine tools
* Stamping and forming presses
* Laboratory and test equipment
* Pressure Switch Technical Manual (PDF)
