24" cincinnati bickford single spindle drill, #5362

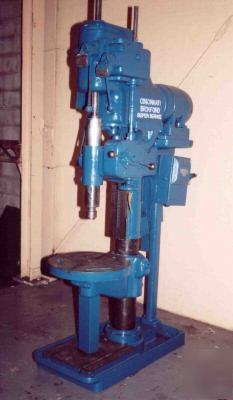

24" CINCINNATI BICKFORD SINGLE SPINDLE DRILL
SERIAL ........................................ 2L840
MODEL ......................................... 24 ROUND COLUMN
DEPTH OF THROAT ............................... 12-1/2
DIAMETER OF TABLE ......................................... 22
AREA OF BASE .................................. 19 X 17
SPINDLE SPEEDS ................................ (12) 90 TO 1500 RPM
POWER FEEDS ................................... (9) .005 TO .043 IPR
SPINDLE TRAVEL ................................ 10
DIAMETER OF SPINDLE ........................... 4
TAPER IN SPINDLE .............................. #4 MT
TRAVEL OF HEAD ON COLUMN ...................... 16
VERTICAL TABLE ADJUSTMENT ..................... 14-1/2
MAXIMUM DISTANCE SPINDLE TO BASE ............. 44-5/8
MAXIMUM DISTANCE SPINDLE TO TABLE ........... 29-3/8
5 HORSEPOWER SPINDLE DRIVE MOTOR
