New panametrics 36DL plus ultrasonic thickness gage ndt
***NEW*** Never Used...Smell The Fresh Leather!!!
Panametrics - 36DL Plus Ultrasonic Thickness Gage
* Standard Measurement Mode:
Time interval from a precision delay after the excitation pulse to the first echo.
* Thru-Paint Echo-to-Echo Mode:
Time interval between two successive backwall echoes for elimination of paint or coating using dual or single element transducers. Manual Mode or Automatic Mode.
* Thickness Measurement Range:
0.020-20 inches (0.5-500mm).
0.0300-0.5511 inch/ S.(0.762-13.999mm/ S).
Allows the gain to be manually increased or decreased in 1dB steps.
* Automatic Probe Recognition:
The 36DL PLUS automatically adjusts internal parameters and corrects for V-path.
Provides zero offset compensation for temperature variations in the transducer material, and for transducer wear.
Programmable Hi-Low Alarm set points with audible and visual indicators.
Data can be stored in 8 standard or custom application-specific file structures.
On-gage reporting of: Summary with statistics, Min/Max with locations, and File Comparison. On-screen comparison of current and previous readings.
16-bit or 32-bit Windows Interface Program compatible with Windows 3.x, 95 and NT.
The 36DL PLUS identifies, stores, recalls,clears, and transmits thickness readings, waveform images, and gage setup information via the RS-232 Serial Port. Baud Rate, Word Length, Stop Bits, and Parity are adjustable from the keypad.
* Maximum # of Stored Values:
Up to 95,000 thickness readings and/or 4000 waveforms, or combination of both.
* Stored Data Documentation:
Each saved thickness reading or waveform is fully documented with measurement status flags and a setup number which identifies parameters such as velocity, transducer gain, etc.

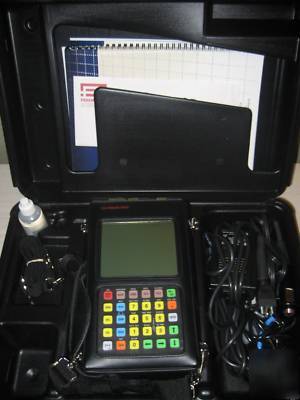

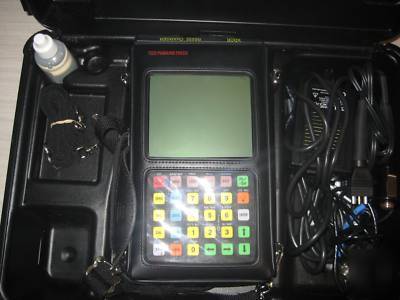

Comes With:Panametrics 36DL Plus Ultrasonic Thickness GageCaseChargerTransducer & LeadExtra Battery Pack2 - StrapsCouplantData CableInstruction ManualPanametrics CD
