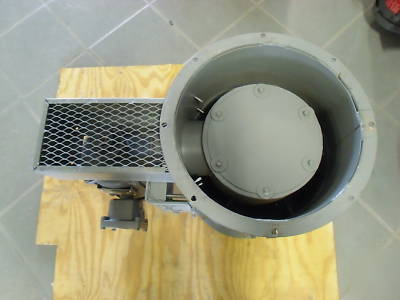

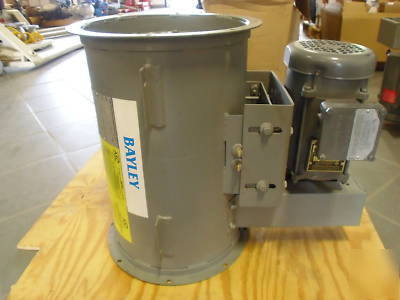

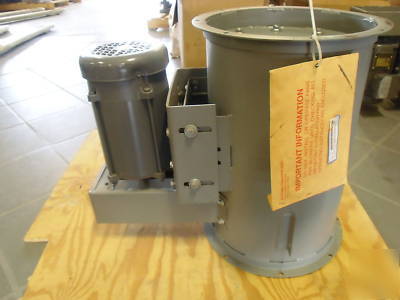

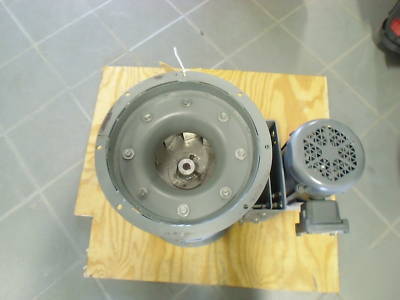

Penn barry tubular inline centrifugal fan blower 15"
New Penn Barry Tubular Centrifugal Fan. Model 90.
Inlet and Outlet diameters: 12/75
* Baldor Ser# F0405174585 Spec. 35E353.764
* PH 1 Class 3 Des: N Code: K Ser. F: 1.00
PennBarry inline centrifugals, or tubular fans, are the most practical fans for many applications. Straight-line airflow through the fan eliminates unnecessary duct elbows, and tubular fans are normally quieter than axial type inline fans. In addition, vertically mounted units and cliling hung fans save valuable floor space.
Arrangement 9 fans are the most versatile type of tubular fan. They can be horizontal base mounted, horizontal ceiling hung, or vertically mounted. The wheel, shaft and bearing configuration is the same as Arrangement 1, but the motor is mounted on the fan housing, the same as with Arrangement 3 fans. Vertical units are constructed with reinforcing end brackets for either floor or ceiling mounts.
For more information: http:// /index.php?option=com_content&view=article&id=67&Itemid=111
Technical Data: http:// /images/pdf/o&m/tub.pdf
