25 plastic water filled barrier / jersey barrier [used]

Click hereto download specifications for the Model 2001-M in a Portable Document Format [pdf].

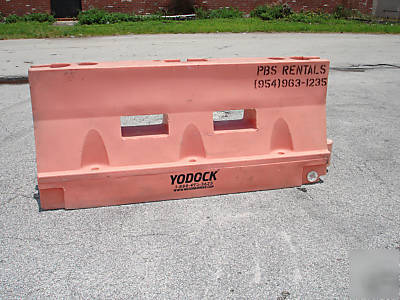

Yodock Model 2001-M is a recyclable, portable energy disbursement cell. This is our smaller barrier that can be used anywhere. It is the intent of this specification to describe a lightweight portable plastic traffic control device. The intended use of the Model 2001-M is to assist in the prevention of vehicular penetration of a work zone or gore area, street and road closures, as well as providing clear delineation for traffic channelization and pedestrian safety.
This Specification recognizes the need for a lightweight, portable traffic control device to perform some of the functions of concrete barriers, cones, barrels, Type I, II, III barricades and other such devices used to control, direct, channel and stop vehicular and pedestrian traffic for purposes of aiding in containment and/or safety.
The 2001-M is made using rotational molding to ensure watertightness and integrity. The unit is manufactured with internally molded baffels in order to maintain its shape, be properly sealed and leakproof. The unit is provided with drain plugs and underside grooves to allow flow of surface drainage. The dimensions of the unit are as follows:
Water Filled Weight: 750 lbs, holds 100 gallons
Material: The material is a recyclable polyethylene. It is rotational molded to a thickness of approximately 8mm.
Ultraviolet Light: An ultraviolet light inhibitor is introduced into the raw material mix to provide sufficient protection to ensure reasonable life of the product in all weather conditions.
Colors: The standard colors of the Model 2001-M are opaque ivory and orange. Other colors can be produced.
Each unit shall weigh approximately 75 pounds empty and up to approximately 750 pounds when water filled. When installing as a longitudinal channelizer, the units can be interlocked and ballast, or completely filled with water. Warning flags, steady burning lights or flashing lights can be securely mounted to each unit, if conditions require.
The units are joined together by a unique coupling device. This coupling device aids in the prevention of separation of the individual portable energy distribution cell units, in the event of an impact. The unit has ports devised to allow for ground mounting and forklift holes for ease of mobility when filled.
