Hp agilent 8494G 4 ghz attenuator module 001 - n conn.

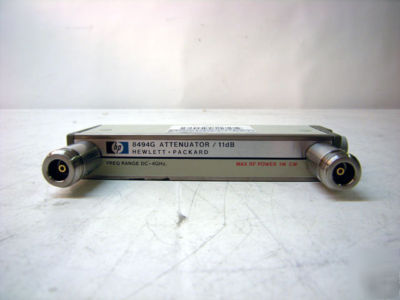

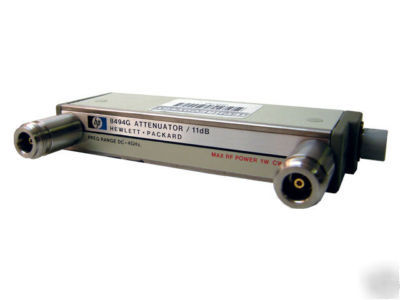

HP Agilent 8494G 4 GHz Attenuator Module 001 - N Connector
The HP 8494G dc to 4 GHz programmable step attenuator offers exceptional repeatability and reliability. Attenuation is provided in 1 dB steps from 0 to 11 dB. Precision gold-plated leaf springs ensure long-life (over 5 million cycles) and very high attenuator repeatability (typically 0.01 dB). A maximum switching time of 20 ms (including contact settling) speeds automatic testing. Custom step attenuator/switch combinations are possible.

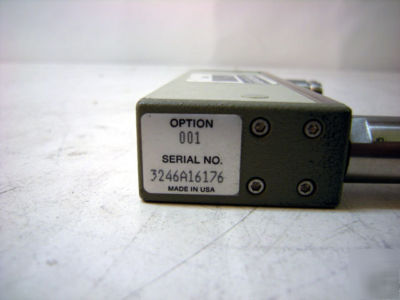

This is a used, HP Agilent 8494G 4 GHz Attenuator Module 001 - N Connector
* Frequency range: dc to 4 GHz
* Attenuation range: 0 to 11 dB, 1 dB steps
* Insertion loss at 0 dB: 0.6 dB + 0.09 dB/GHz
* Repeatability life: 0.03 dB maximum, 5 million cycles per section
* Maximum RF input power: 1 W (average), 100 W (peak)
* Connector type: Type-N female

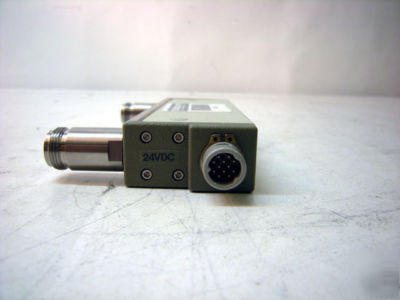

* Programming connector: 12-pin Viking
