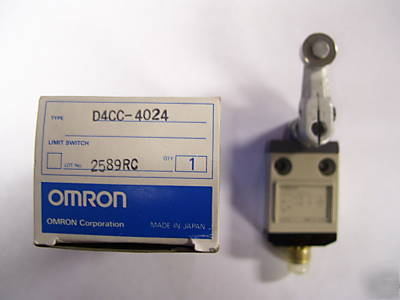

New omron limit switch D4CC-4024 in box
General-purpose Limit switches
Single-Pole, Double-Throw type
Ratings (DC): Non-Inductive load
Rated voltage: 30 VDC, Resistive load: 1 A (NC) 1 A (NO), Lamp load: 1 A (NC) 1 A (NO)
Rated voltage: 30 VDC, Inductive load: 1 A (NC) 1 A (NO), Motor load: 1 A (NC) 1 A (NO)
LED (Light when not operating)
Voltage: 30 VDC Leakage current: Approx. 1 mA
Permissible operating frequency (Mechanically)
120 operations / 1 minute Max.
Permissible operating frequency (Electrically)
100 m Ohm Max. (Initial value)
(Measuring method is contact resistance meter.)
Between live-metallic part and ground: 100 M Ohm Min.
Between each terminal and non-live-metallic part: 100 M Ohm Min.
(Condition, at 500 VDC Megger)
Vibration frequency range: 10 to 55 Hz, Double amplitude: 1.5 mm, Contact opening: 1 ms Max. at the free position and the total travel position.
Contact opening is 1 ms Max. at the free position and the total travel position at 500 m/s2.
