New * sealed* allen bradley 1746-NI4 /b 1746NI4 07/09
Rockwell Automation > PLC & HMI > I/O Products > SLC 500 > 1746-NI4/B
Allen Bradley 1746-NI4 SLC 500 High Resolution Analog Input Module, 4 Point, Series B
1746-NI4 SLC 500 Analog Input Module, Number of Inputs: 4 Analog Inputs 10V DC or 20 mA; Current Loop Input Range 20 mA (nominal), 30 mA (maximum); Current Loop Input Coding 16,384 for 20mA; Absolute Maximum Input Voltage 7.5V DC or 7.5V AC RMS; Nominal Input Impedance 250 ; Voltage Input Range 10V DC -1 LSB; Voltage Input Impedance: 1M ; Overvoltage Protection (IN+ to -IN): 220V DC or AC RMS continuously; Backplane Current: 25mA @ 5V, 85mA @ 24V; Resolution (bits), Max: 16.
Allen Bradley 1746-NI4 Analog Input module contains 4 analog input channels that are user selectable per channel for voltage or current to support a variety of monitoring and controlling applications. The 1746-NI4 has 4 individual DIP switches that control the input mode of input channels 0-3. Inputs are filtered to reject high frequency noise and provide 14- to 16-bit (range-dependent) resolution. Required Removable Terminal Block: 1746-RT28.

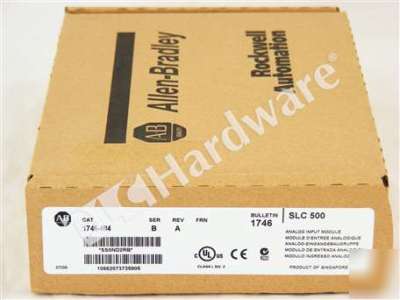

One New Factory Sealed Allen Bradley 1746-NI4 Series B, SLC 500 High Resolution Analog Input Module, 4 Point.
The unit is Series B, Rev. A, Pkg Date 07/09.
