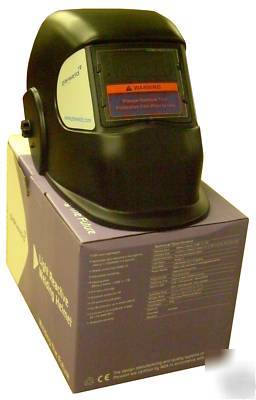

Parweld XR914 shade 9-13 auto darkening welding helmet
PARWELD XR914 SHADE 9-13 AUTO DARKENING WELDING HELMET
PARWELD light reactant, variable shade 9 - 13 welding helmet
Can be used for MIG, TIG, ARC Welding and Plasma Cutting
NEW and supplied in original packaging and complete with "remove before use" lens protectors inside and out. Also in package is spare replacement outer lens and comprehensive Instruction and safety booklet.
SPECIAL FEATURE - This helmet has feature that enables full adjustment of the headband in all directions....including forward and backward movement (in 3 steps) of the entire helmet i.e. alters the distance the mask is from your face
Slim and Lightweight Automatic Light Adjustment from light to dark in 1/25,000th of a second Shade Control from DIN9-13 Adjustable Sensitivity Viewing Area 98mm x 44mm / 3.86 x 1.76 Full Face Coverage Automatic Power On/Off Life Expectancy 6 years UV/IR Protection up to shade DIN 16 Conforms to CE and BS EN 379:BS EN 175: ANSI Z87.1
Arc welding generates visible light, infrared and ultra violet radiation, which can damage eyes and skin. The Parweld XR914 Light Reactive Welding Helmet offer s the latest innovative protection for the welder.
Moulded Construction The XR914 is both slim and lightweight in construction. Manufactured from a high impact polyamide nylon material which ensures the helmet provides high levels of comfort and durability.
Full Face Coverage A curved design with a clear spatter shield over the optics provides maximum clarity. The helmet is fully adjustable to suit all head and body types.
Features full neck coverage, locking headgear and no on/off switch.
Automatic Power on / off The auto on, auto darkening, wide view lens switches from light to dark in 1/25,000th of a second and offers continuous eye protection against UV and IR radiation, even when the lens is in the light state mode.
Filters The welding filter has 2 photo sensors that react independently as the welding arc is struck enabling the almost instantaneous darkening of the filter.
All Parweld filters have a Shade 3 light state, ideal for welding preparation.
Conforms to European Standards The XR914 Light Reactive helmet complies with BS EN 379:1994 and BS EN 175:1997:ANSI Z87.1:1989
Viewing Area 98mm x 44mm /3.86 x 1.76
Cartridge Size 122mm x 100mm x 9mm / 4 x 3 x 3
UV/IR Protection Permanent Shade DIN16
Dark State DIN Shade 9 to 13 Variable
Power Supply Solar cells with built in rechargeable battery (estimated 6 year life)
Switching Time Light to dark 0.00004 seconds
Light to Dark 0.25 - 0.35 seconds - fast position 0.60 - 0.80 seconds - slow position
Operating Temp -5 C to +70 C (23 F to 131 F)
Storage Temp -20 C to +70 C (-4 F to -158 F)
Helmet Material High Impact Polyamide Nylon
Minimum Amperage Sensing 40 Amps
