> 20 MC14504BCP (MC14504) hex level shifter; ttl to cmos

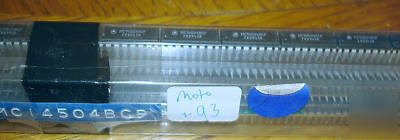

20 MC14504BCP (MC14504) hex level shifter; ttl to cmos
* P-Suffix Plastic 16-Pin Dip Package.
The MC14504B is a hex non inverting level shifter using CMOS technology. The level shifter will shift a TTL signal to CMOS logic levels for any CMOS supply voltage between 5 and 15 volts. A control input also allows interface from CMOS to CMOS at one logic level to another logic level: Either up or down level translating is accomplished by selection of power supply levels VDD and VCC. The VCC level sets the input signal levels while VDD selects the output voltage levels.
UP Translates from a Low to a High Voltage or DOWN Translates from a High to a Low Voltage
Input Threshold Can Be Shifted for TTL Compatibility
No Sequencing Required on Power Supplies or Inputs for Power Up or Power Down
3 to 18 Vdc Operation for VDD and VCC
Diode Protected Inputs to VSS
Capable of Driving Two Low Power TTL Loads or One Low Power Schottky TTL Load Over the Rated Temperature Range
