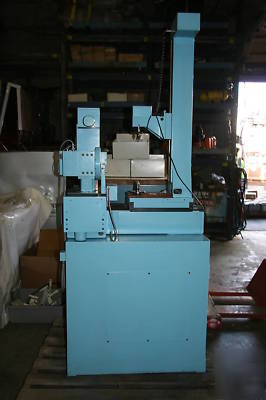

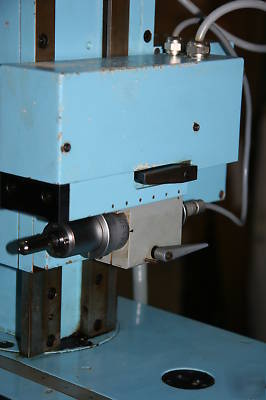

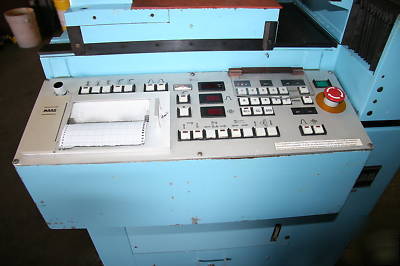

Maag gear testing system - model ph 40 - with tools

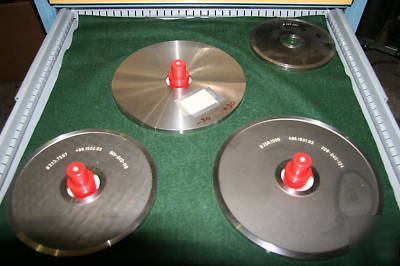

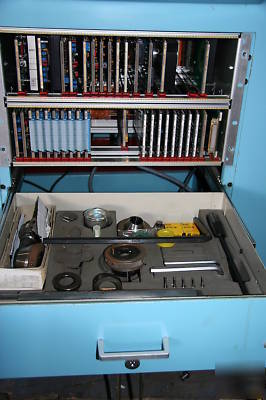

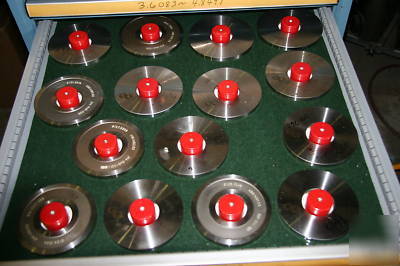

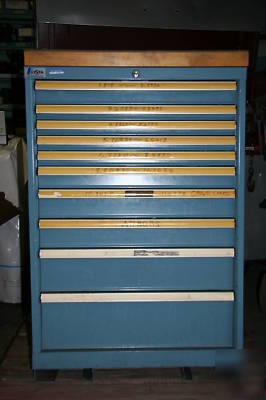

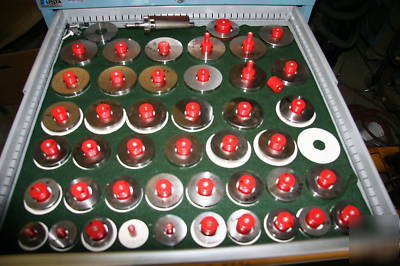

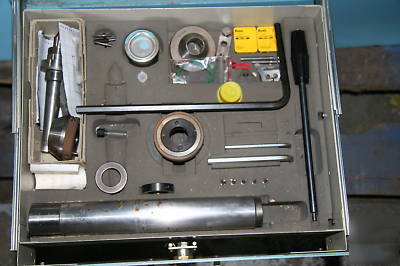

This listing includes not only the gear tester, but a matching cabinet full of tools and accessories.
Maximum outer diameter... 400 mm
Base circle diameter, minimum/maximum.... 7 - 385 mm
Module, minimum/maximum... 0.5 - 15
Maximum traverse of generating slide... + - 115 mm
Maximum facewidth of spur gear traversed without readjustment.. *B* .. 120 mm
Minimum, height of stylus over arbor no. 1... *U* ... 2 mm
Additional vertical adjustment of pick-up... *V* ..210 mm
Total vertical measuring range maximum... *M* 330 mm
Please refer to the pictures for more detail. Contact us with any questions.
