Advanced techniques at-707 bga csp rework station

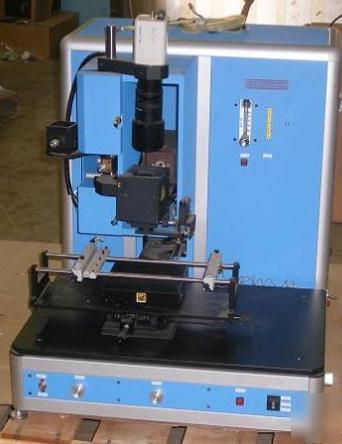

ADVANCED TECHNIQUES AT-707 BGA CSP REWORK STATION
100% - Very Clean (Minimal Signs of Wear)
100% - Excellent (Functions 100%)
ADVANCED TECHNIQUES AT-707 BGA CSP REWORK STATION, BGA-100 Inspection Tool, PR-M-3 1MM (QTY 2), CD-1200 Video Cable, AC ADAPTER, PHONE CABLE, SOFTWARE CD
Station Was Pulled From a Working Environment.
Includes Advanced Techniques Software Disk V.2
Standard: 0.04 x 0.04 (1mm x 1mm) - 1.58 x 1.58 (40mm x 40mm)
Optional: 0.04 x 0.04 (1mm x 1mm) - 2.25 x 2.25 (57mm x 57mm)
Placement Accuracy: +/- 0.0004 (10 microns)
PCB Thickness: up to 0.32 (8mm)
Magnification: up to 640x with optical and digital zoom
Top Heater (Forced Convection): 450 C (842 F)
Pre -Heater (Forced Convection): 250 C (482 F)
Temperature / Time Control: Closed-Loop
Air Requirements: 80-100 PSI @ 2.5 SCFM
Power Requirements: 120 VAC, 25A, 50/60 Hz | 220/240 VAC,15A, 50/60 Hz
Dimensions: 31 D x 25 W x 34 H (787mm x 635mm x 864mm)
Manufacturer: ADVANCED TECHNIQUES
BGA CSP PLACEMENT & REWORK STATION
