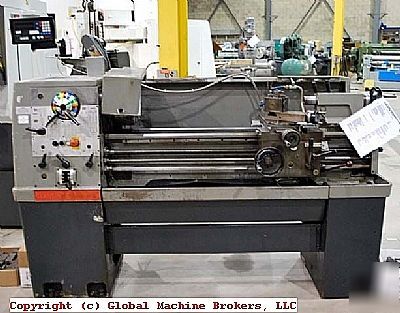

Clausing colchester model 8015 geared
CLAUSING COLCHESTER MODEL 8015 GEARED
CK-18592 S/N LMR40SILFV/13740 NEW 1988
BAR CAPACITY THRU SPINDLE: 1-5/8"
SPINDLE BEARINGS: GAMET PRECISION
SPEEDS (16): 30, 40, 54, 72, 98, 130,
U.S. STANDARD THREADS (45): 2, 2-1/4, 2-1/2, 2-3/4, 2-7/8, 3,
3-1/4, 3-1/2, 3-3/4, 4, 4-1/2, 5, 6, 7,
7-1/2, 8, 9, 10, 11, 11-1/2, 12, 13,
13-1/2, 14, 15, 16, 18, 19, 20, 22,
23, 24, 26, 27, 28, 30, 32, 36, 40,
METRIC THREADS (39): .2, .225, .25, .3, .35, .4, .45, .5, .6,
.7, .75, .8, .9, 1, 1.1, 1.2, 1.25, 1.3,
1.4, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5,
5, 5.5, 6, 6.5, 7, 8, 9, 10, 11, 12, 13, 14
LONGITUDINAL FEEDS (45): .001" - .040"
LEADSCREW DIAMETER: 1-1/8" - 4 ACME
CROSS SLIDE: 18-5/8" X 5-3/4" WIDE
CROSS FEED DIAL: DIRECT READING
CROSS, COMPOUND SLIDE GIBS: TAPERED
SPINDLE GRADUATIONS: 0 - 4 1/2" BY 1/16"
WAYS, INDUCTION HARDENED: 2V, 2 FLAT
ELECTRICS: 230 VOLTS, 3 PH, 60 CYC, 5 HP
