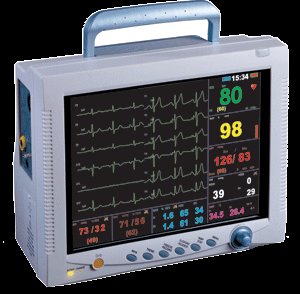

Patient monitor multiparameter fda approved 12.1"
Patient monitor multiparameter FDA approved 12.1"
Used in hospital and clinique for monitoring patient's ECG, RESP, NIBP, SPO2, TEMP, IBP, Multi-gas/O2 parameters
12.1 LCD display, high resolution,
Large number display for long distance vision
Digital SPO2 technology offers anti-motion and anti-low perfusion funtions
Up to 66 beds network capacity to connect with HIS
168 hours tabular and graphic trends & data storage
Dimension: 318mm (W) x 264mm (H) x 152mm(D)
Power Supply : 100~240V; AC: 50~ 60 Hz
Alarm Indication: Visual and audible alarm
Application: Adult, Pediatric and neonate
Leads: I, II, III, aVR, aVL, aVF, V
Gains: 2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV, 40mm/mV, auto
Input impedance: 5M (d.c.~60Hz)
Common Mode Rejection Ratio: 85dB(diagnostic mode)
105dB(monitoring & surgica mode)
Bandwith: 0.5-40Hz (monitoring mode)
Protection: Segregation breakdown voltage 4000VAC, 50/60Hz
Resistant to high-frequency electrotome, myoelectricity, AC, drifting interference
Indication of Detachment of electrodes: Available
Playback of Cardiogram: Available
Scanning Speed: 12.5mm/s, 25mm/s, 50mm/s
ECG waveform playback: 30 minutes
Method: Automatic oscillometric
Operation Modes: Singles (manual), Cycle (automatic), Rapid (continuous)
Measurement : Systolic pressure/diastolic pressure/mean pressure
Auto Measurement: 1,2,3,4,5,10,15,20,30,45,60,90 minutes, 2,4,8, hours
Alarm Limit: 0-120bpm, upper and lower limit continuously adjustable
BLT Digital SPO2 (Pulse Oximetry)
Range & Accuracy of Pulse Rate : 20~250BPM 1BPM
Accuracy : 2 mmHg ( 2%) without probe
Converter sensitivity: 5 uV/V/mmHg
Names of pressures: ART/PA/CVP/LAP/RAP/ICP
Accuracy : 5% ( 4.0 mmHg) or <10%( of Readings)
Measure method: Infrared spectrum
Fi and ET values: CO2 N2O O2 agent(HAL, ISO, ENF, SEV, DES)
Calibration: Room air calibration performed automatically when changing airway adapter (<5 sec)
Measuring and alarm range of multi-gas:
CO2: 0-10 % , 0.3% or 6% of reading, whichever is greater
N2O: 0-100 %, 2% or 8% of reading, whichever is greater
HAL, ISO, ENF: 0-5%, 0.15% or 8% of reading, whichever is greater
SEV: 0-8%, 0.15% or 8% of reading, whichever is greater
DES: 0-18%, 0.15% or 8% of reading, whichever is greater
Respiration rate Measuring alarm range and accuracy: 3~100 bpm, 1 bpm
Alarm indication: Sound and light indication
Storage / Transportation : -20 -50
Storage / Transportation : 93% noncondensing
Storage / Transportation : 500~1060hPa
ECG , HR, RESP, NIBP, SPO2, RR, TEMP, Battery
2-TEMP, 2 IBP, Thermal Recorder, Nellcor SPO2 , EtCO2(side stream, main stream), Multi-gas/O2
