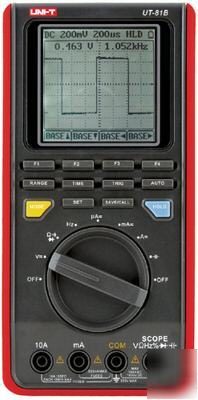

Uni-t UT81B handhold scopemeter multimeters usb
Handhold ScopeMeter MultiMeters
Autorange When it is under multimeter mode, the Meter automatically selects
Continuity Beeper sounds for resistance readings below threshold.
Duty Cycle Measure signal on or off time in %.
Battery Access Door Battery replaceable.
Basic Specifications (Digital Multimeter)
Basic Accuracy DC Voltage: 0.8%
Sampling rate 40M per second Bandwidth 8MHz
Sampling rate / Scale 20 pixels Channel Single
Trigger types Free Run / Normal / Single Shot
Timebase Range 100ns/div-5 sec /div (1-2-5)
Input Impedance 10MW (excluding Multimeter part)
Timebase accuracy (0.1% + 1pix) Accuracy (5%+1pix)
Voltage Sensitivity 200mV/div~500V/div (1-2-5)
Test Lead 1 pair, 1.5v Battery 1pc, English Manual ,Alligator Clip?
USB Interface Cable 1pc, Software, 110V /220V Power Adapter 1pc
