0.56" dc digital red led ±70A amp panel meter honeywell

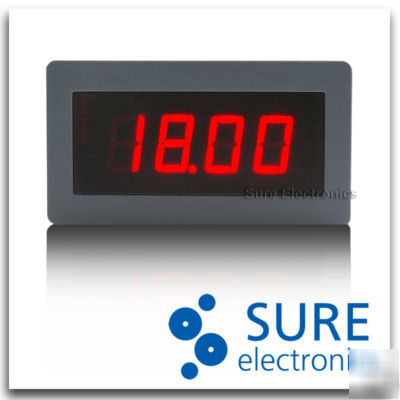

0.56" DC Digital Red LED 70A Ammeter Panel Meter ( Honeywell )
This item is the first digital DC ammeter that is designed to suit the requirements of industrial applications. Different from the traditional ammeter that employs a shunt to protect the entire circuit, this item uses an advanced Hall effect-based open-loop current sensor made by Honeywell since it completely separate the current from the ammeter. Users now can run the cable directly through the opening (10.4mm 20.4mm) of the current sensor without worrying about burning-up or inaccuracy because the current sensor consumes low power and there is almost no insertion loss. In addition, the A/D module of this ammeter is still of a successive approximation type which makes the A/D conversion fast and accurate. The self-adaptation ability to ambient brightness makes it an ideal choice in many applications.
* Wide measurement range: 0~ 70A DC
* Though-hole type current measurement
* Flexible installation options (Vertical & Horizontal)
* Ammeter Size: 79.00 (L) X 42.00 (W) X 25.00 (H) 0.2mm
* Self adapted to ambient brightness, not dazzling in night time since the brightness can be adjusted automatically.
* Large (0.56 /14.2mm) easy-to-read red LED display
* -10 to +60 operating temperature range
* UL and CE-certified compound AWG22 cables are used, low pressure drop.
Specifications of Current Sensor:
* Working Temp range: -25-80 C
* Storage Temp range: -40-85 C
* Material of sensor's housing: PC (Flame retardant rating: UL94-V0)
* Terminal: GALLANT 2501H-4P + ground wire
* Is(Secondary-side) connection: 4-wire shielded cable (length: 800mm, outer Dia: 5mm)
Supply Current ( @ VCC = 12V )
Power Consumption ( @ VCC = 12V )
Accuracy ( @3 minute warm up )
4 digit, 0.56 /14.2mm high LED
* Industrial applications which requires high current measurement
* 0.56" DC Digital Red LED 70A Ammeter Panel Meter ( Honeywell ) 1
* Open-loop current sensor CSCA0075A000-U12J-001 1
Go to Download Center for application, manual or drivers.
