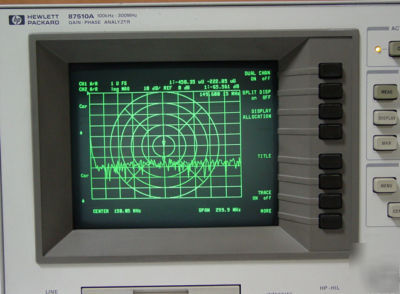

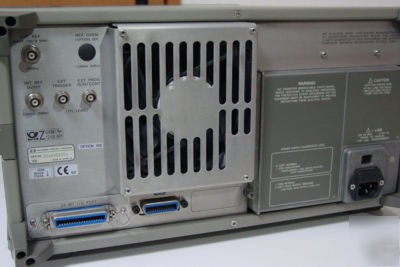

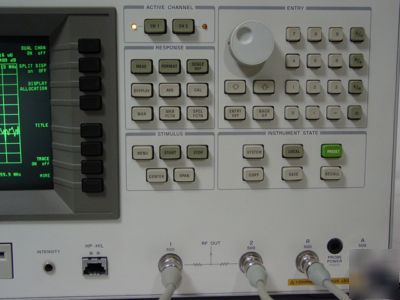

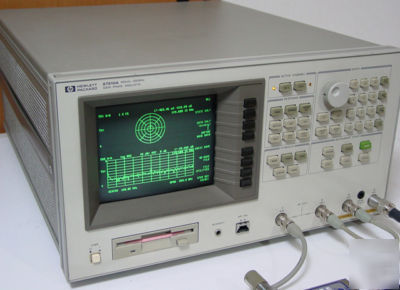

Hp 87510A/10/H01 100KHZ-300MHZ gainphase analyzer
HP 87510A/10/H01 100KHz-300MHz GainPhase Analyzer
100KHz-300MHzres1mHz stability5*10E-6/day acc20ppm Output:-45-+15dBm(OPT10) res0.2dB acc1dB
PowerSplitter 6dB Tracking0.1dB SWR1.2 BNC(f)*2
Receiver:100KHz-300MHz IFBW:20,200,1K,4K,8KHz 50ohms Max0dBm Noise-110dBm
2input:R,A Mode:A/R,A,B DynamicAcc:0.05dB 0.3deg Delay:10p-0.5sSweep:Lin/Log/List Points:2-801
Calibration:Through,Isolation,3term PowerSweep Average Smoothing Sweep:0.25ms
3.5FDD HP-HIL HP-IBASIC GP-IBRAMDISK DigitalIO Filter-Analysis 235H425W553D 350VA 27Kg
Usable from 20KHz-300MHz Settable start Frequency1KHz- E-manual
