> New 10M 62.5UM 0.27 na multimode fiber+10M SM090 free.

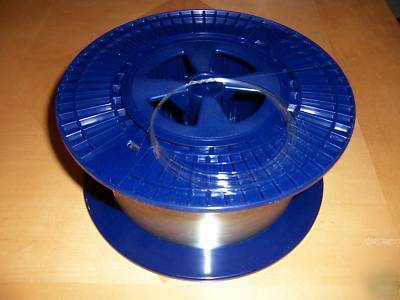

New 10M 62.5UM 0.27 na multimode fiber+10M SM090 free.
MM625, 10 meters, NA 0.275, Core diameter 62.5 m Multi-Mode optical fiber
Promotion : free 10 meters SM090 single mode optical fibers.
other types of fibers (100, 200 400 600 m in core dia ) or other length please check :
http:// for more info.
Operating Wavelength: 300-1650nm
Numerical Aperture: 0.275 0.015
Attenuation: 2.7dB/km @ 850nm; 0.6dB/km @ 1300nm
Bandwidth: 200 MHz-km @ 850nm; 600MHz-km @ 1300nm
Operating Wavelength: 300-1650 nm
Single Mode Operating Range: 1060-1650 nm
Attenuation: <0.35 dB/km @ 1310nm; <0.21 dB/km @ 1550nm
Mode Field diameter : 9.0 0.4 m @ 1310 nm; 10.0 0.5 m @ 1550 nm
Cladding Diameter: 125 1 m
Coating Material: Double layers UV Cured Acrylate
Operating Temperature: -60 to 85 C
View : http:// for more info.
Quotation request, Please fax to 1-888-4578389
