> Qed# RM7000-266T, microprocessor with on-chip sec cache
Qed# RM7000-266T, microprocessor with on-chip sec cache

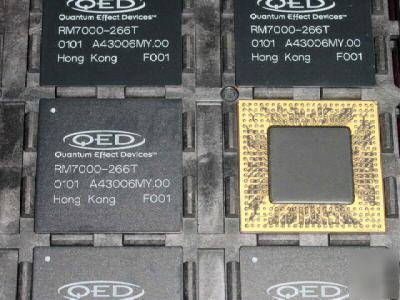

This item is for one piece QED# RM7000-266T. These are New and Unused!
Dual Issue symmetric superscalar microprocessor with instruction prefetch optimized for
system level price/performance
200, 250, 266, 300 MHz operating frequency
>500 Dhrystone 2.1 MIPS @ 300 MHz
High-performance system interface
1000 MB per second peak throughput
125 MHz max. freq., multiplexed address/data
Supports two outstanding reads with out-of-order return
Processor clock multipliers 2, 2.5, 3, 3.5, 4, 4.5, 5, 6, 7, 8, 9
Integrated primary and secondary caches all are 4-way set associative with 32 byte line size
16 KB instruction, 16 KB data, 256 KB on-chip secondary
Per line cache locking in primaries and secondary
Fast Packet Cache increases system efficiency in
Integrated external cache controller (up to 8 MB)
High-performance floating-point unit 600 MFLOPS maximum
Single cycle repeat rate for common single-precision operations and some double-precision
Single cycle repeat rate for single-precision combined multiply-add operations
Two cycle repeat rate for double-precision multiply and double-precision combined
MIPS IV Superset Instruction Set Architecture
Data PREFETCH instruction allows the processor to overlap cache miss latency and
Single-cycle floating-point multiply-add
Integrated memory management unit
Fully associative joint TLB (shared by I and D translations)
64/48 dual entries map 128/96 pages
Embedded application enhancements
Specialized DSP integer Multiply-Accumulate instructions, (MAD/MADU) and threeoperand
I&D Test/Break-point (Watch) registers for emulation & debug
Performance counter for system and software tuning & debug
Fourteen fully prioritized vectored interrupts - 10 external, 2 internal, 2 software
Fully static CMOS design with dynamic power down logic
RM5271 pin compatible, 304 pin TBGA package, 31x31 mm
s RM7000 is a highly integrated symmetric superscalar microprocessor capable of
issuing two instructions each processor cycle. It has two high-performance 64-bit integer units as
well as a high-throughput, fully pipelined 64-bit floating point unit. To keep its multiple execution
units running efficiently, the RM7000 integrates not only 16 KB 4-way set associative instruction
and data caches but backs them up with an integrated 256 KB 4-way set associative secondary as
well. For maximum efficiency, the data and secondary caches are write-back and non-blocking. An
optional external tertiary cache provides high-performance capability even in applications having
A RM5200 Family compatible, operating system friendlymemory management unit with a 64/48-
entry fully associative TLB and a high-performance 64-bit system interface supporting multiple
outstanding reads with out-of-order return and hardware prioritized and vectored interrupts round
out the main features of the processor.
The RM7000 is ideally suited for high-end embedded control applications such as
internetworking, high-performance image manipulation, high-speed printing, and 3-D
visualization. The RM7000 is also applicable to the low end workstation market where its
balanced integer and floating-point performance and direct support for a large tertiary cache (up to
8 MB) provide outstanding price/performance.
