> Ransomes AR250 98" cut riding mower

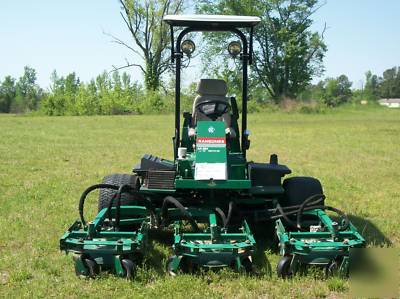

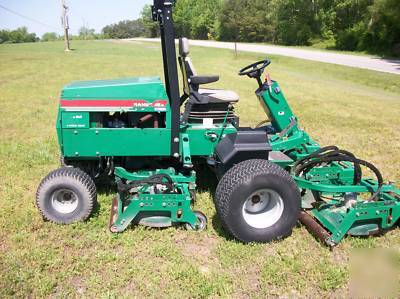

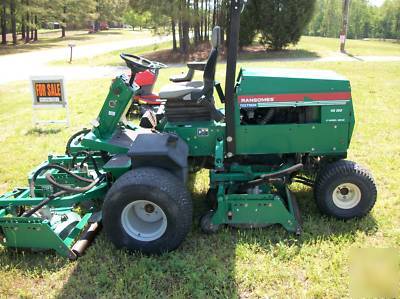

Ransomes AR250 98" cut riding mower
- Roll Over Protection (ROPS) with Sun Shade Canopy
- Heavy duty formed steel chassis with box section frame rails
- Single foot pedal operationg infinitely variable hydrostatic transmission

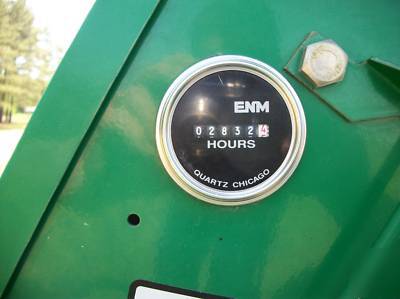

- Gauges- Fuel, coolant temperature, running time
- 4-cylinder, liquid-cooled Kubota diesel
- Power- 38 hp (28 kW) at 3000 rpm
- Displacement: 91.44 cu in (1498 cc)
- Direct coupled Sundstrand M35 wheel motors
- 29 cu in front; 21 cu in rear
- Direct coupled variable displacement pump
- Parking brake - foot operated
- Suspension - Can be varied to adjust for operator's weight
- Diagnostic hydraulic test ports
- Five 22" rotary envirodecks (mulching decks) supported by equal ratio lift arms
- Drive - fixed displacement hydraulic motors directly coupled to cutting units
- Control - Cutting unit lift lever with automatic shutoff and safety interlock restart.
- Construction - Heavy-duty, welded pressed steel
- Suspension - Steerable floating head
- Height of cut - Adjustable in .25" increments
