Seco-larm sl-sk-910R2 two channel wireless rf receiver
Seco-Larm SL-SK-910R2 Two Channel Wireless RF Receiver
* Two FORM-C dry relay contact (N.O./N.C./COMMON) outputs. Rated 10 Amps at 24 VDC.
-1. Hi-Q SELECTIVITY and a CODING IC for rejecting unwanted RF signals.
-2.HIGHER SENSITIVITY for greater operating distances.
-3.UNSURPASSED ANTENNA MATCHING CAPABILITIES so the receiver is less affected by how and where mounted.
-4.GREATER TUNING STABILITY so the receiver's frequency remains unaffected by shock and vibration.
* 2 LEDs (one for each channel) indicate RF reception, learn mode entered, transmitter learned, memory cleared.
* 2 Mode switches (one for each channel) for easy transmitter learning.
* Learns up to 30 transmitters (15 for each receiver channel).
* SK-910R2-4: Same as SK-910R2, but 433.39MHz.
60mA per channel at 12VDC (activated)
68 billion codes (SK-919TD1S-UP
15 Per Channel, 30 per receiver
Two form "C" dry relay contacts (N.O./N.C./Common); 10 Amps at 24VDC

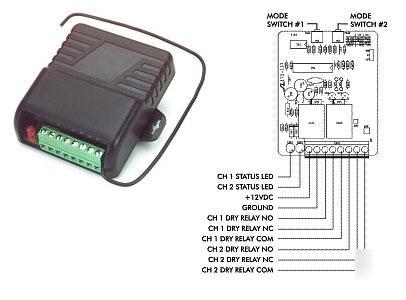

8 Quick-connect screw terminals (+, -, with N.O./N.C./Common for channel 1 and N.O./N.C./Common for channel 2)
