Chatillion dfm digital force meter

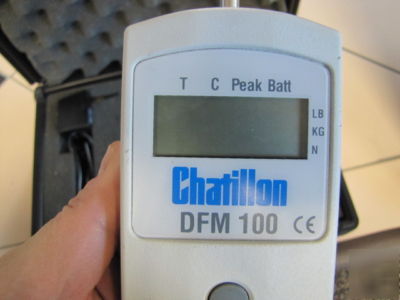

I have for sale a used in good condition Chatillon DFM Digital Force Meter
Integral Load Cell Gauge in four capacities from 2 to 100 lbs. - A remarkably cost effective digital force gauge offering digital accuracy, versatility and extreme ease of use. Four element keypad controls basic functions: ZERO, UNITS, PEAK, *. Offers fast, easy operator training for both production floor and laboratory environments. Its affordable price, rugged all-metal design and interval sampling rate of 1000 samples per second makes the DFM perfect for a wide variety of peak applications.
* Internal digital sampling rate of 1000 samples per second
* Tension/compression modes are indicated by "T" for tension or "C" for compression upon force application.
* Selectable units of measurement: lb, kg or N
* Display update rate of 8 times per second
* Rechargeable battery with Peak and Low Battery indicator on display
* Continuous AC operation available for 110 VAC or 220 VAC
* Die cast, powder coated metal reversible housing. Split housing design permits upright display whether gauge is hand held or test stand mounted.
* Easy to read 1/2" high LCD display with 4-1/2 digits for forced value. On the display, indicators show units, mode, peak and low battery

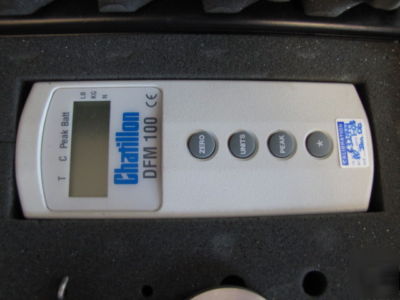

* 4 button keypad with separate on/off switch
* Rear mounting hole patterns: (2) #10-32 thread holes for light duty stands

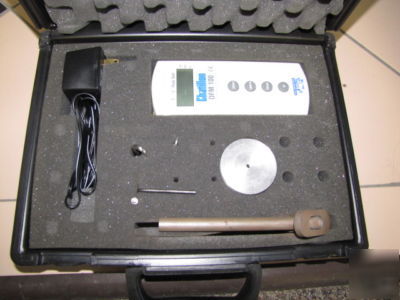

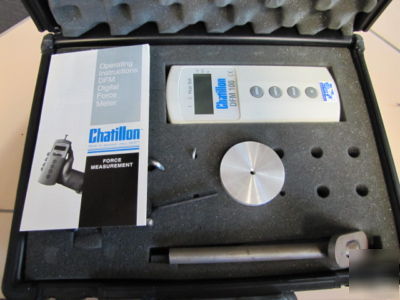

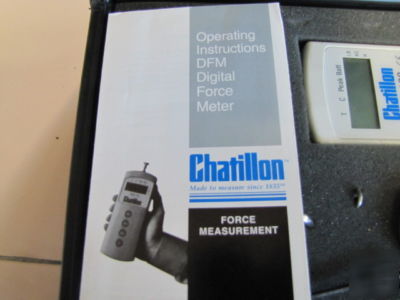

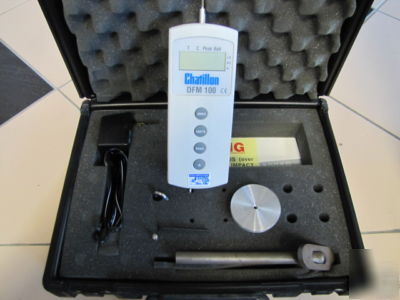

Stainless steel attachments include a flat head, hook and 2" extension rod. Gauge, battery charger, attachments, Allen wrench and operation manual are furnished in a cushioned carrying case.
*maximum load with no mechanical damage (display blanks at rated capacity + 10%)
Accuracy: 0.5% of full scale 1 LSC (least significant count)
Tare Capacity: 10% of full scale in pound mode
Temperature: 40 to 110 F (5 C to 45 C), Stability: 0.03% per F
