Gardco genlyte thomas 250HPS 208V parking lot light 19"

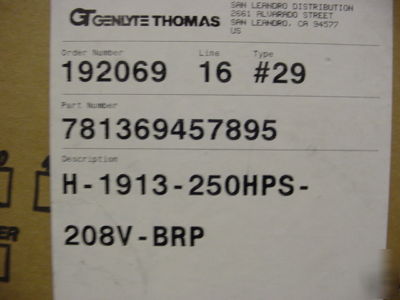

GARDCO GENLYTE THOMAS H-1913-250HPS-208V-BRP

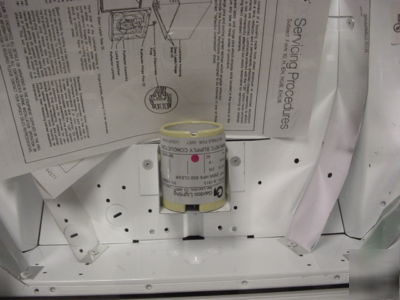

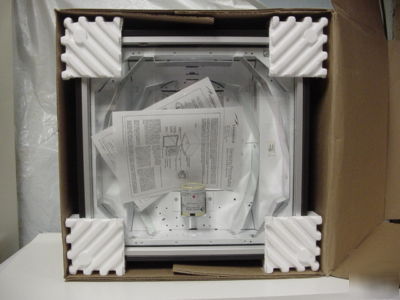

Each Gardco Square Form 10 arm mount is a cutoff luminaire for high intensity discharge lamps. Units are designed with half-cube proportions. Internal components are totally enclosed, rain-tight, dust-tight and corrosion resistant. No venting of optical system or electrical components is required or permitted. Luminaires are completely assembled with no disassembly required for installation. Lamping requires no lifting or hinging of the luminaire housing, disturbing wiring or exposing uninsulated live parts.
Fabricated (H style) units are 19" (48.26 cm), and are one piece, multi-formed aluminum with an integral reinforcing spline and a single concealed joint. Pressure injected silicone provides a continuous weathertight seal at all miters and points of material transition.
Extruded aluminum arm is prewired and secured to fixture by contractor. Assembly is suitable for mounting to pole without requiring access to luminaire.(NOT incuded)
Mitered, extruded anodized aluminum door frame retains the optically clear, heat and impact resistant tempered flat glass in a sealed manner using hollow section, high compliance, memory retentive extruded silicone rubber. In 400w and below, Type VS luminaires are supplied with an acrylic sag lens. A glass sag lens is supplied with Type VS luminaires above 400w. Concealed stainless steel latch and hinge permit easy toolless access to the luminaire.
The segmented Form 10 optical system is homogeneous sheet aluminum, electrochemically brightened, anodized and sealed. The segmented reflectors are set in faceted arc tube image duplicator patterns to achieve IES Types I (1), III (3), IV (FM and 4X), and V (Q - horizontal lamp and VS - vertical lamp) distributions. The mogul lampholder is glazed porcelain with a nickel plated screw shell with lamp grip - all securely attached to the reflector assembly.

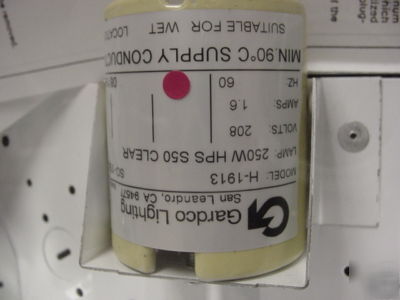

All electrical components are UL recognized and factory tested. Electronic and magnetic HID ballasts are high power factor and mounted on a unitized plate. Magnetic HID ballasts are the separate component type. Electronic and magnetic HID ballasts are capableof providing reliable lamp starting down to -20 F / -29 C.
formed housings (H style) are standard with a chromatic acid pretreatment and an epoxy undercoat. The finish coat is a thermosetting polyester baked at 450 F / 232 C
All luminaires bear UL or CUL (where applicable) Wet Location labels.
