> Pelco MC3810-2 security camera, housing and wall mount
Pelco MC3810-2 security camera, housing and wall mount

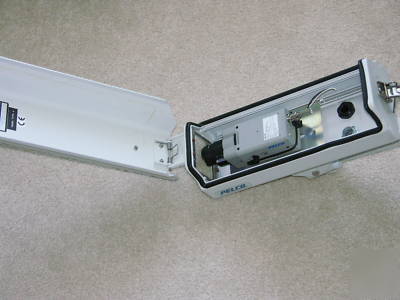

PELCO EH3512 Outdoor Enclosure
Die-Cast and Extruded Aluminum Construction
Cable Entry Glands and Mounting Holes on Bottom of Enclosure
Designed for Indoor/Outdoor Applications
Easy Access for Servicing and Installation
Maximum Camera Size (including BNC connector) up to*:
* 3.00" Height x 2.87" Width x 10.25" Length
*Assumes lens is fully extended
Camera Mounting: Multiple holes on adjustable camera sled, camera sled can be inverted for additional camera elevation
Construction: Extruded and die-cast aluminum
Finish: Gray polyester powder coat
Viewing Window: 0.187" (4.76mm) thick, Lexan
Viewing Window Area: 2.25" Height x 2.63" Width
Cable Entry Holes: 0.875"diameter; will accept 0.5" conduit fitting when compression gland is removed
Latch: Link-lock No. 3, stainless steel; can be secured with padlock
* Two PG13.5 compression glands on bottom
* 0.47" maximum cable diameter

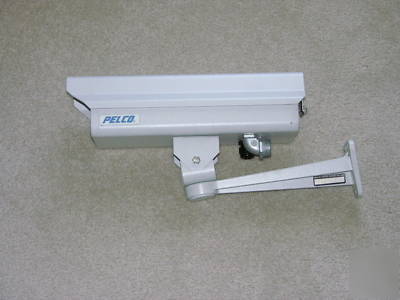

The Pelco EM1450 Wall Mount, Light-Duty, Enclosure is a light duty wall mount, which supports up to twenty pounds. It was designed specifically to be used with Pelco's EH3500 series of camera enclosures. The EM1450 features a die-cast aluminum arm with a small adjustable head, which allows mechanical positioning and provides enough clearance for cables.
Made of die-cast aluminum, this wall mount holds up to twenty pounds. It can be pole mounted with Pelco's optional PA101 pole mount adapter. In addition, the adjustable head, with a pan adjustment of 360 degrees and a tilt adjustment of plus/minus 75 degrees.

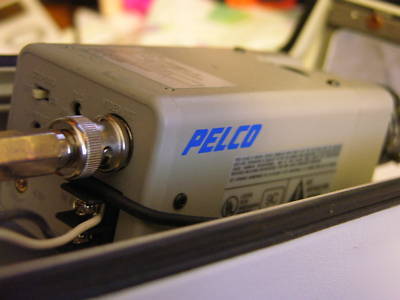

The MC3800 Series are compact and lightweight, 1/3-inch image format, monochrome CCD camera featuring contemporary styling and easily accessible side panel controls.
The MC3800 Series has been designed specifically for surveillance and monitoring applications where lighting is minimal. Only 0.1 lux is required for clear image acquisition, producing superior picture quality.
Primary features include AC line lock for external synchronization, CCD iris (electronic shutter), V-phase adjustability, 4-pin auto iris connector for use with DC-driven auto iris lenses, and a double cam C/CS head which eliminates the need for C-mount adapters.
In addition, lower power consumption and a wide environment operating range make the MC3800 Series an excellent choice for a majority of surveillance and monitoring applications.
CCD-IRIS (Electronic Shutter)
Horizontal Resolution 380 TVL
Standard Resolution with Enhanced Sensitivity
For use with DC-controlled Auto Iris Lenses or Manual Iris Lenses
Integral Isolation Transformer
