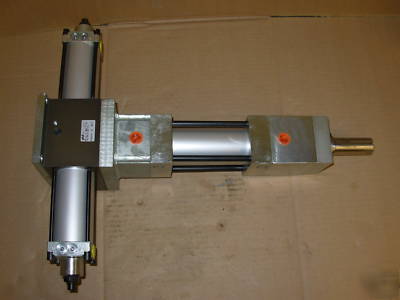

Phd 1000-8000 linear + rotary motion actuator 3" 180°
Item Title: Series 1000-8000 Multi-Motion Actuator
Model Number: MA11CF 5 180X3 -PK-DC-DR-D1-D2-E-V
* Series 1000-8000 Multi-Motion Actuators provide independent rotary and linear motion from one output shaft ideal for part transfer, positioning, and orientation.
* Free floating pistons with rack and pinion rotary design eliminates binding for low breakaway and long unit life.
* Sealed shaft ball bearings on rotary section provide long life and low friction.
* Shear coupling prevents catastrophic damage to unit if maximum torque is exceeded.
* Simple construction allows easy field repairability.
* Design Number: 1 - Imperial
* Mounting Style: CF- Flange on Rotary Section
* Rod End Style: PK Plain with keyway and preload keyway
* Linear Section Cushion: Cushions both ends
* Rotary Section Cushions: Cushions clockwise and counterclockwise
* Rotary and Linear Options: E Magnetic Piston for Hall Effect Switch & V Fluoro-Elastomer Seals
For complete technical specifications please refer to the link below
Product Link: http://litstore.phdinc.com/pdf.asp?filename=MM.pdf
Condition: New no Box with some light cosmetic wear that will not affect performance
