Steel support arch assembly for storage/repair building
STEEL SUPPORT ARCH ASSEMBLIES - $295.00 / ARCH ASSEMBLY
60 COMPLETE ARCH ASSEMBLIES AVAILABLE

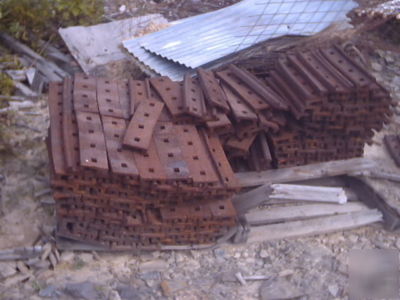

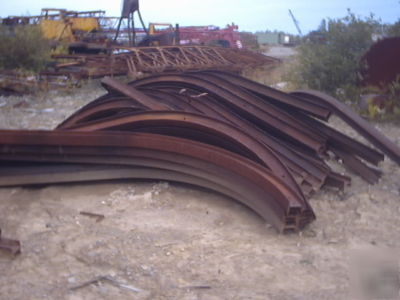

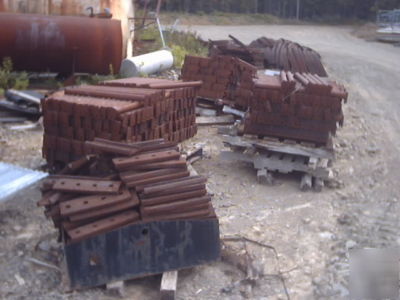

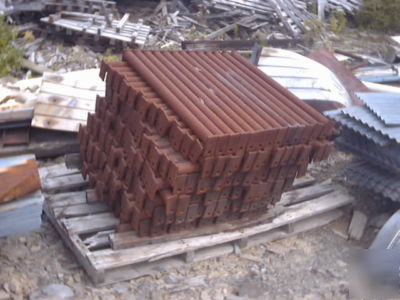

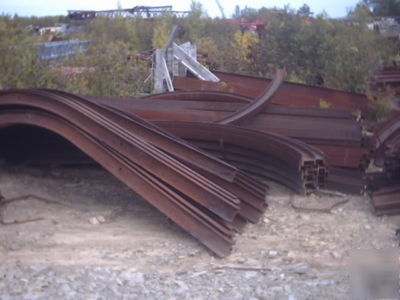

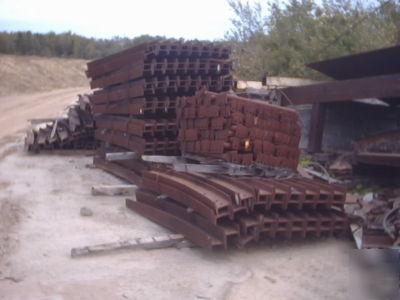

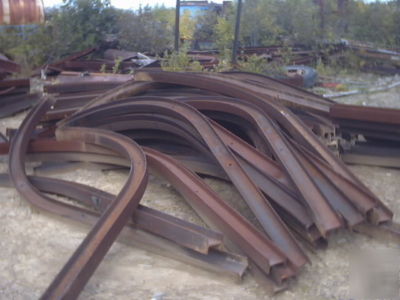

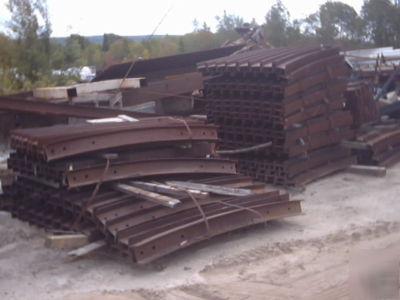

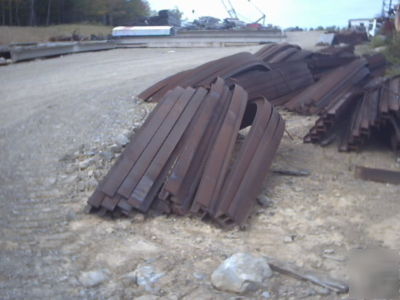

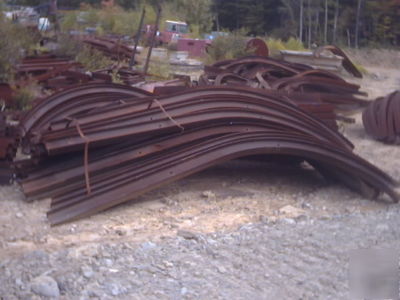

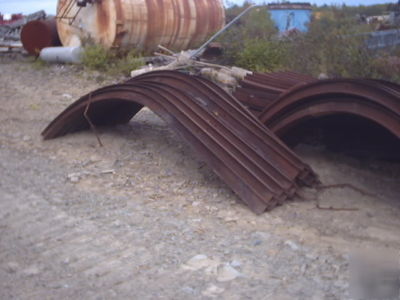

COMPLETE ARCH ASSEMBLY COMPRISED OF 2 CURVED SECTIONS, 1 CENTER SECTION AND CONNECTING PLATES. IDEAL SUPERSTRUCTURE FOR A STORAGE SHED, SMALL MAINTENANCE SHOP OR SHELTER FOR EQUIPMENT OR SUPPLIES. SIMPLY ERECT ARCHES (NUMBER REQUIRED TO ACHIEVE DESIRED LENGTH0, CONNECT ARCHES WITH INTERMEDIATE STRINGERS AND ADD ROOFING
THE DISTANCE BETWEEN ARCHES WILL DEPEND ON WHAT TYPE OF ROOF YOU INSTALL AND EXPECTED LOADING FROM SNOW, ICE, ETC.
ASSEMBLED MEASUREMENTS: 21' WIDE X 14' HIGH . IF YOU WANT A WIDER SPACE, THEN YOU CAN ADD ANOTHER CENTER SECTION (EXTRA $60.00 / ADDITIONAL CENTER SECTION & CONNECTING PLATE)

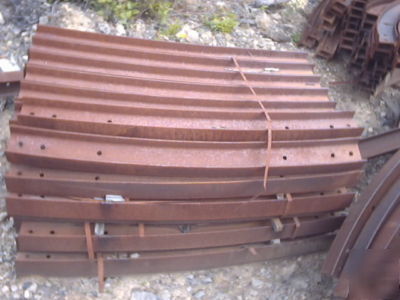

THE CENTER SECTIONS ARE 7' LONG EACH; WITH TWO CENTER SECTIONS USED YOU WILL HAVE 28' WIDE BUILDING. TO INCREASE THE HEIGHT, YOU CAN MOUNT THE CURVED SECTIONS ON A KNEE WALL.
THE STEEL SECTIONS ARE 6"H X 5" WIDE AND APPROXIMATELY 18 LBS./FT.
