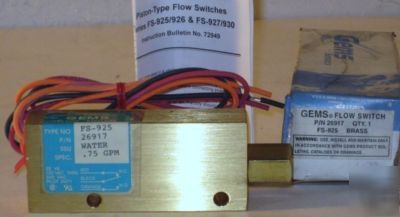

Gems 26917 fs-925 piston-type flow switch 120/240VAC
This listing is for a flow switch.
* Cat / Model / Part #: 26917
* 120VAC (120 Volts AC) (120 VAC) (120V AC)
* 240VAC (240 Volts AC) (240 VAC) (240V AC)
* 20VA (20 Volt-Amps) (20 VA)
* Spec: .75GPM (.75 Gallons Per Minute) (.75 GPM)
* Description: Flow Switch; Piston Type
* Flow Rate Settings: Liquids - 0.1 GPM to 1.5 GPM; Air/Gases - see chart
* Primary Construction Material: Brass or Stainless Steel
This series of precision-calibrated switches provides reliable and consistent performance; repeatability is within 1%. FS-925 units are factory preset for actuation at specified flow rates.
These switches provide accurate detection of excessive or insufficient flow rates in such applications as: protecting against loss of fluid flow in hydraulic systems, assuring proper coolant flow in semiconductor processing equipment, monitoring high pressure lubrication systems, and ensuring proper air flow in water/waste systems.
* Electronic Equipment: Laser Heads, Welders, Power Supplies, High Speed Spindles, X-Ray Tubes, Semiconductor Equipment
* Bearings or Gears: Presses, Rotating Equipment, Conveyors, Machine Tools, Robotics
* Processing & Dispensing Equipment: Water Purifications and Filtering, X-Ray Film Processing, Beverage Dispensing, Chemical Additives, Gas Sampling, Distilling
* Housing: Brass or 316 Stainless Steel
* Piston (In Brass Housing): Polysulfone for water, Brass for oil or air
* Piston (SS Housing): 316 Stainless Steel
* Spring: 316 Stainless Steel
* Other Wetted Parts: Epoxy
* Operating, Maximum 1000 PSIG (69 bar)
* Proof 2500 PSIG (172 bar)
* Burst 5000 PSIG (345 bar)
* With Brass or S.S. Piston -20 F to +300 F (-29 C to +148.9 C)
* With Polysulfone -20 F to +225 F (-29 C to +107.2 C)
* Repeatability 1% Maximum Deviation
* Set Point Differential 15% Maximum
* Inlet/Outlet Ports 1/4" NPT
* Electrical Termination No. 18 AWG, 24" L., Polymeric Lead Wires
For further specifications, please visit Gems' product page at http:// /content.aspx?id=1180
