New port PM500-2L linear stage PM500-C6 PM500-4L.50

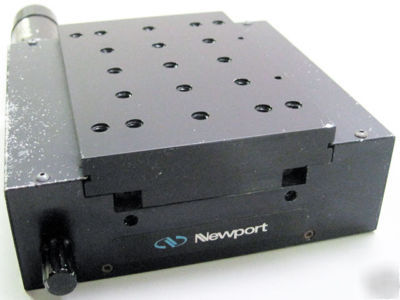

NEWPORT PM500-2L LINEAR STAGE PM500-C6 PM500-4L.50
* Resolution ( m): 0.05 (L.50)
* Minimum Incremental Motion ( m): 0.05 (L.50)
* Bi-directional Repeatability ( m): 0.1 (L.50)
* Absolute Accuracy Maximum: 0.5 m per 100 mm, typical
* Speed Range: 0.01 m/s to 100 mm/s
* Acceleration Range (g): 0.001 0.25
* Normal Load Capacity (N): 340
* Axial Load Capacity: Not recommended
* Straightness/Flatness (over center 80% travel) ( m): 1.5
* Base Material: Stress-relieved 7075 Aluminum
* Bearings: Crossed-roller bearings
* Drive Mechanism: Very low friction lead screw
* Drive Screw Pitch (mm): 4
* Limit Switches: Optical, on encoder's fiducial track
* Origin: Optical, on fiducial track, located at center of travel
* Motor: Cool running DC servo motor with Tachometer
This unit is fully tested and working and will arrive in the condition shown. It comes with a 14 Day Guarantee against being DOA from receipt.
