Phoenix contact 50 position varioface module 2281089

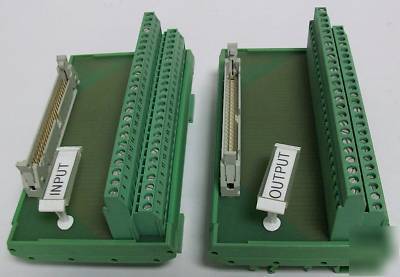

Item Title: 50 Postion Varioface Module
Varioface module with screw connection and flat-ribbon cable plug connector
with male connector and short and long locking latches for female connectors.
Ambient temperature (operation) -20 C ... 50 C
Ambient temperature (storage/transport) -20 C ... 70 C
Test voltage: 500 V (50 Hz, 1 min.)
Standards/regulations: IEC 60664
Connection in acc. with standard IEC / EN
Type of connection Screw connection
Conductor cross section solid min. 0.2 mm
Conductor cross section solid max. 4 mm
Conductor cross section stranded min. 0.2 mm
Conductor cross section stranded max. 2.5 mm
Conductor cross section AWG/kcmil min. 24
Conductor cross section AWG/kcmil max 12
Connection 2 Flat-ribbon cable connection
Type of connection Flat-ribbon cable plug connector in acc. with IEC 60603-13
