Myavr assembly kit mydigitalout
GB Attention: you have to assemble the board by yourself NL

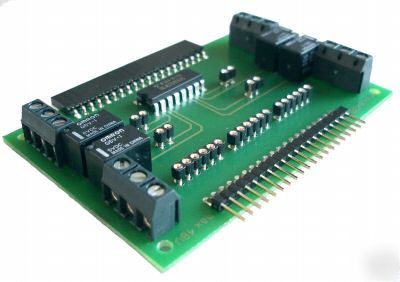

The myDigitalOut adds four relay outputs to your myAVR board. It can be used together with all variants of the myAVR board (MK1 LPT and MK2 USB). With the myDigitalOUt Add-On it is possible to realize switching operations up to an switching capacity of 24W, that is for example 0.5A wirh 48V or 1A with 24V. This means, that the myDigitalOut Add-On is designed for experimental uses or for model construction.
Always use an external power supply unit with this board.
Never operate this Add-On with a voltage over 48V.
The myAVR board is required as a basis board.
* material: FR4, 1,5 mm; 0.35 m Cu
* PCB pre-drilled, tin-plated, in industrial quality
* female pin header to connect to the myAVR board
* male pin header to connect to other modules
* 4 x relais, switching capacity 30W, up to 48V
* printed circuit board myDigitalOut - precasted and prepared to assemble
* 3 pin header 6 way, female, straight
* 4 pin header 2 way, female, straight
* 1 pin header 20 way, female, right angle
* 1 pin header 20 way, male, right angle
* 1 IC driver 7 way, ULN2003AN
* terminal block 3 way, RM 5,08
* enclosed: assembly instruction with layout diagram and myAVR Ressource CD
Software and documents are in CD. More information is available on:
