> Cincinnati FTV840-1800 cnc vertical milling machine
Cincinnati FTV840-1800 cnc vertical milling machine
CINCINNATI FTV CNC VERTICAL MACHINING CENTER
Model FTV840-1800, New 2003, S/N 7078A00-KH-0002Stock # K13095 EQUIPPED WITH:

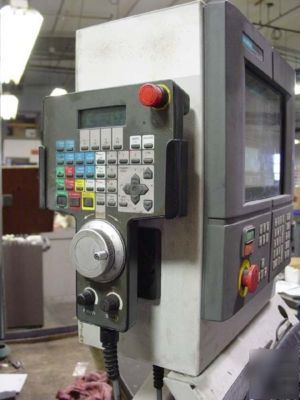

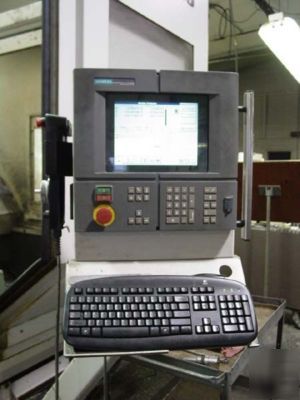

Acramatic 2100 CNC Control, RS-232 Port, Multiple Part Program Storage,
Self Diagnostics, 48 Station Automatic Tool Changer, Heavy Duty
Traveling Column Design with Fixed Table, Spindle, Manual Pulse
Generator, Axis Error Compensation, Cutter Compensation, Full Enclosure,
Chiller, Coolant System. CATALOGUE SPECIFICATIONS:
Table Working Surface................................. 95.6" x 32"
Table Load Capacity................................... 6000 lbs
Longitudinal Travel (X-Axis).......................... 72"
Cross Travel (Y-Axis)................................. 32"
Vertical Travel (Z-Axis).............................. 31.5"
Spindle Nose to Table................................. 4.7" - 36.2"
Tool Storage Capacity................................. 48
Spindle Horsepower.................................... 45 HP
Spindle Speeds Range.................................. 10-8000 RPM
Spindle Taper......................................... #40 Cat
Electrics............................................. 460/3/60
Approximate Machine Dimensions........................ 188" x 149"
Approximate Machine Height............................ Max 153"
