Z-comm vco 1480MHZ-2055MHZ, V603ME16, mini-14H

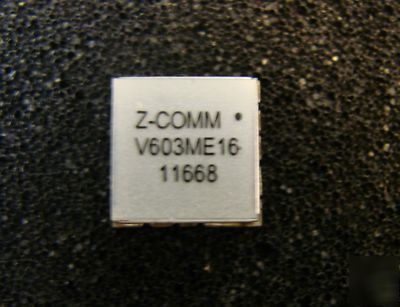

This is one piece of New Z-COMM VCO, 1480MHZ to 2055MHZ, Part Number: V603ME16 in MINI-14H Package (0.5"x0.5"x0.22").
* Frequency Range: 1480MHz to 2055MHz;
* Phase Noise: -92dBc/HZ at 10KHz offset;
* Tuning Voltage: 1V to 11V;
* Tuning Sensitivity: 108MHz (avg);
* Pulling: < 10MHz (14dB return Loss);
* Operating Temp: 0C to +60C;
http://rfbayinc.com/Data_Sheet/VCO/V603ME16.pdf
