54" tbl 5HP spdl birmingham bpv-B2V40 bed-type mill ver
54" Tbl 5HP Spdl Birmingham BPV-B2V40 Bed-Type Mill VER

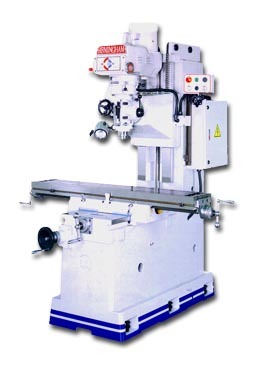

54" Table 5HP Spindle Birmingham BPV-B2V40 Bed-Type Mill VERTICAL MILL, 5 HP, #40 Taper
New "Birmingham" Bed-Type 5 HP Milling Machine
Mechanical variable spindle speeds from 70-4300 rpm
Heavy duty Meehanite castings and hardened & ground square ways
Hardened and ground table and table T-slots
Turcite coated surfaces for x/y axis
Precision ground ACME leadscrews
X & Y axis ac inverter drive power feeds
Manual or automaic quill feeds 0.0015", 0.003", 0.006" per revolution
Complete coolant system with pump, nozzle and base chip & coolant pan
Rubber way covers on x & y axis
Control panel w/electric cabinet
Tool box kit and leveling pads
Z Axis Travel 19 5/6" (head vertical travel on column)
Spindle Taper: NT #40 (also available in R-8 or #30 tapers)
Spindle Speed, Variable 70-4300 rpm
Longitudinal Feeds, Variable 7/8-33-3/4"/min
Vertical Feeds 33"/min. rapid 7/8"-33-3/4" variable
Fully closed way covers on column
Newall digital readout, Topaz, 3 axis (free installation)
Power air draw bar (free installation)
6" anglock precision vise with swivel base
8" anglock precision vise with swivel base
Clamping kit, P.N CK-52, 52 pcs. 5/8" T-slot, 1/2" 13NC stud
