Bk precision triple output dc power supply model 1660

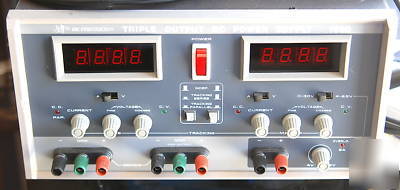

BK Precision Triple Output DC Power Supply Model 1660
Nice B&K Precision Model 1660 Triple Output DC Power Supply. Very versatile supply as it can be used in series, parallel, independent or tracking modes.
* Two 0-30 VDC, 2A sections capable of independent or tracking operation
* Switchable series/parallel operation - 3O V sections
* 0-30VDC, 4A in parallel or 0-60V, 2A in series
* Adjustable current limit controls - 30 V sections
* Constant current and constant voltage indicators - 30 V sections
Output Voltage Range: 0V to 30V (Master & Slave).
Output Current Limit Range: 0A to 2A (Master & Slave).
Load Regulation: (Constant Voltage) 0.01% + 3mV (Master & Slave).
Line Regulation 108-132V: (c.v.) 0.01% + 3mV (Master & Slave).
Ripple: RMS (c.v.) 1mV (Master & Slave).
Load Reg. (Constant Current) 0.2% + 3mA (Master & Slave).
Line Regulation 108-132V: (c.c.) 0.2% + 3mA (Master & Slave).
Ripple Current (at 108V): (c.c.) 3mA RMS (Master & Slave).
Master/Slave Tracking: (Series) 0.2% + 10mV.
Volts Panel meter Accuracy: 0.5%+2 (Master & Slave), 0.5%+2 (4-6.5V).
Current Panel Meter Accuracy: 0.5%+2 (Master & Slave), 0.5%+2 (4-6.5V.
Output Voltage Adj. Range: (4-6.5V) from 4V to 6.5V.
Load Regulation: (Constant Voltage) 10mV (4-6.5V), (0-5A load).
Line Regulation 108-132V: (c.v.) 10mV (4-6.5V).
Ripple & Noise: 2mV RMS (4-6.5V).
Over Voltage Protection Threshold: 6.8V to 7.3V. Power: 110, 120, 220, 240 VAC, 50/60Hz.
Power Consumption: Fully loaded approx. 320W.
Protection: Reverse polarity and current limiting.
