Ideal signaltek-fo copper, fiber optic, tdr tester otdr

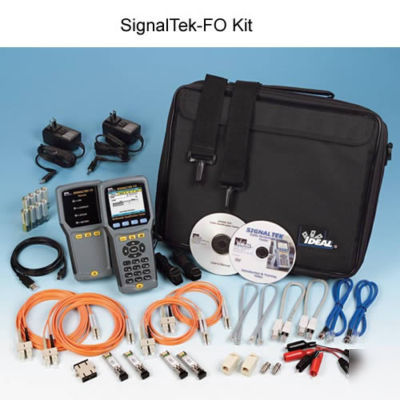

Used Ideal SIgnalTek-Fo Comes with everything In picture Including fiber modules. Hardley Used Modules are still new.
Qualifaction Tester Includes Chargers, Case,Maunals,Software,Lots of Misc cables and leads, Fiber Modules two 850 and two 1310 nm along with fiber access kit . This kit is about $2900 without modules the 1310 nm module is $900 alone and theres two so this is a great deal and a great tester.
Heres a link below to read more on specs.
http://cableorganizer.com/ideal-industries/33-983-signaltek-qualification-tester.html
* USB A/B, DC power input
* Shielded RJ-45 Port :Supports 10/100/1000Mbps Ethernet connections
* Small Form-factor Pluggable (SFP): Supports SFP modules sourced through IDEAL Industries in 850nm and 1300nm wavelengths, 1000Mbps Ethernet
* Class 1 Laser EN60825-1
* Compatible fiber types: 50/125 m or 62.5/125 m graded index multimode fiber
* Power Output (dBm): -9.5min, -3max
* Receiver Power Range (dBm): 0 to -20
* Max Link Length: 550m (1800ft) on 50/125 m fiber; 300m (985ft) on 62.5/125 m fiber
* Operating Temperature: -10 to 85 C (14 to 185 F), 85%RH non condensing
* Compatible fiber types: 50/125 m or 62.5/125 m graded index multimode fiber and 9/125mm step index single mode fiber
* Power Output (dBm): -9min, -2.5max
* Receiver Power Range (dBm): 0 to -22
* Max Link Length: 550m (1800ft) on 50/125 m fiber; 300m(985ft) on 62.5/125 m fiber; 10km (6.2mi) on 9/125 m fiber
* RJ-45 Port: TDR length measurement of 1-4 pair cables to 140m/460ft
* SFP Port: No length measurement of fiber optic cables
* Bert Error Rate Measurements
* Copper: 10/100/1000Mbps. Error rates tested to IEEE 802.3ab standard
* Fiber: 1000Mbps. Error rates tested to IEEE 802.3ab standard.
* Battery Life: Standard AA Alkaline Batteries
* Copper Testing: Approx 15 hours @ 22 tests per hour (45s Autotest)
* Fiber Testing: Recommend use of AC adapters when testing fiber
