New - robohand triple wedge parallel gripper rpc-315

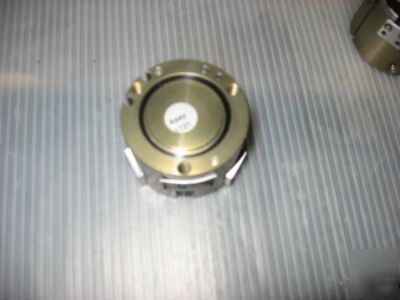

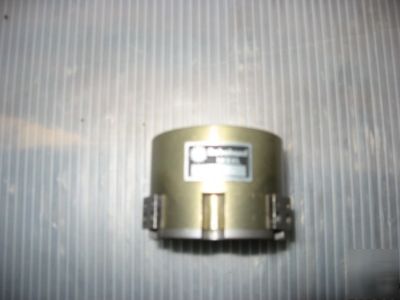

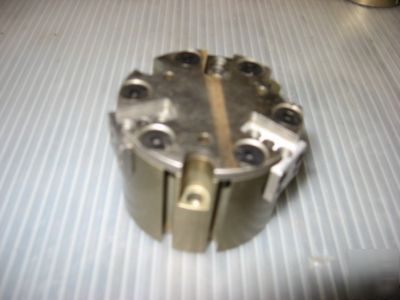

NEW - Robohand Triple Wedge Parallel Gripper RPC-315
* Manufacturer Part Number: RPC-315
* Hardinge part number GT000793415
RPC - Triple Wedge Centering Parallel Gripper
* Patented "Triple Wedge" design offers extremely high grip force to weight ratios
* Optional spring loaded stripper plate available
* Superior accuracy and repeatability
Total Rated Grip Force F @ 100 psi, 7 bar 100 lbs.
Stroke........................................................ .30 in.
Weight ....................................................... 0.53 lbs.
Pressure Range......................................... 20-100 psi
Cylinder Bore ......................................... 1.250 in.
Displacement ............................................ .32 in3.
Standard Seals....................................... -30 ~180 F
Viton Seals ............................................ -20 ~300 F
Actuation .................................................. 0.12 sec.
Accuracy.................................................... 0.002 in.
Repeatability.............................................. 0.001 in.
Valve required to actuate .......................... 4-way,
