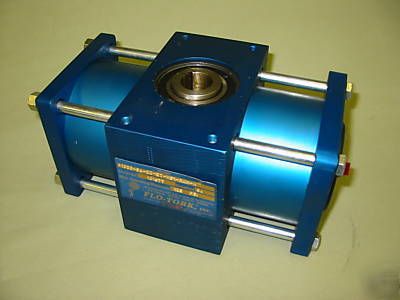

Rotary actuator, 94 deg rotation, 1" hollow drive
3. 1250 INCH POUNDS OF TORQUE AT 125 PSI AIR MAX

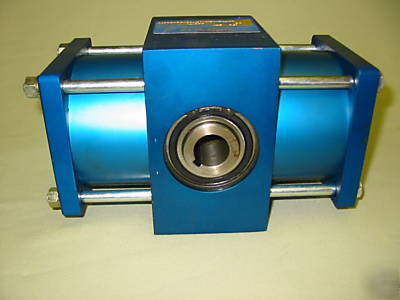

5. 1" INSIDE DIAMETER HOLLOW KEYED DRIVE HOLE, THROUGH BOTH SIDES
6. 4 THREADED MOUNTING HOLES ON 1 SIDE
8. FLO-TORK INC. #A1000-94-00-ET-MS1-RKH-N
9. OVER ALL DIMENSIONS, 10" LONG X 5 3/4" DEEP X 4 3/4" TALL
Torque Range - 100 to 10,000 lb.-in. @ 100 psi
Standard Rotations - 94 , 184 , 364
Rack & Pinion - High Mechanical Efficiency
Zero Leakage - High Volumetric Efficiency
Precision Bearings - High Load Capacity, Low Friction
Gearing - Single Tooth Full Load Capacity
Wide Temperature Range - from 0 to 200 F
A-100 & A-500 - Extruded Aluminum Housing - Hard Coat Anodized
Many of these items have been out of the box or on the shelf for a while. They may have some scratches and dents on them, But, if I say they are NEW, I mean they have never been used.
