Neslab merlin M33 recirculating water chiller m-33

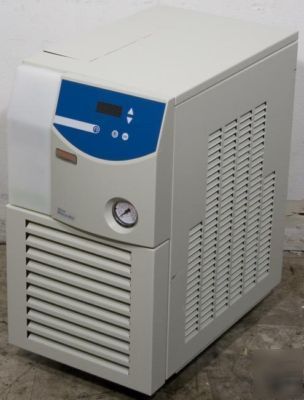

Thermo-Neslab Merlin M33 Recirculating Water Chiller
Specifications are from Thermo-Neslab and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
This unit has been tested down to 5 C and is guaranteed to work.
Power Requirements: 115 V, Single Phase, 60 Hz, 13.2
Refrigerant Type: R134A, 10 oz. high: 300 psi, low: 150 psi
Link to the Datasheet: Thermo-Neslab Merlin Series Recirculating Chiller Datasheet
Link to the Manual: Thermo-Neslab Merlin Series Recirculating Chiller Manual
* Analytical Instrumentation
* Semiconductor Manufacturing
Standfard Features & Benefits:
* Refrigeration system - Provides CFC-free refrigeration system for precise temperature control and optimum stability
* Hot gas bypass - Extends chiller life
* Reservoir isolation valves - Eliminates reservoir overflow when pumping vertically
* Fluid reservoir - Enables you to view the liquid level and fluid condition at a glance
* Removable front grille - Allows quick release of front grille for routine cleaning
* Integrated fluid pressure and flow adjustment - Meets specific application needs
* Easy access reservoir drain - Allows fast and easy acces when changing fluids
* Pressure gauge - Provides fluid system diagnostics at a glance
* Digital temperature controller - Provides intuitive controller with an easy-to-view digital display for simple operation
* High/low temperature safeties - Ensures your application maintains critical operating parameters
* Compact design - Maximizes valuable floor space
The Neslab Merlin Series of recirculating chillers provide precise temperature control in the most demanding cooling applications. Engineered for process-fluid cooling, these feature-packed compact chillers include easy-to-use controls, effortless maintenance, and quiet operation. Plus adjustable high and lower temperature safeties, an audible alarm, and temperature stability of up to 0.1 C.
The environmentally-friendly CFC-free air-cooled refrigeration system provides reliable and powerful cooling.
60 Hz: 1250 watts, 4266 BTU, 1075 Kcal
50 Hz: 1125 watts, 3840 BTU, 968 Kcal
Temperature Range: +5 C to 35 C
Ambient Temperature Range: 13 C to 35 C (55 F to 95 F)
Pump Type: PD-1 (1.5 gpm at 60 psi)
Reservoir Volume: 0.5 gallons (1.8 liters)
Unit Dimensions: Option 1, 115 V, 60 Hz, 13 Amps (100 V, 50 Hz, 13 Amps)
* Picture 7 - Pressure Gauge
* Picture 8 - Water Reservoir
* Picture 9 - Water Inlet/Outlet Connections & Pressure Adjustment
* Picture 10 - Water Drain Connection
* Picture 11 - Power Connection
* Picture 12 - Serial Number Tag
